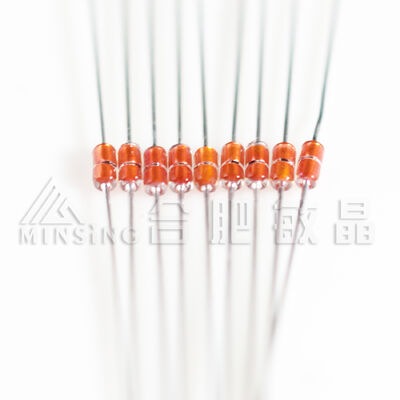

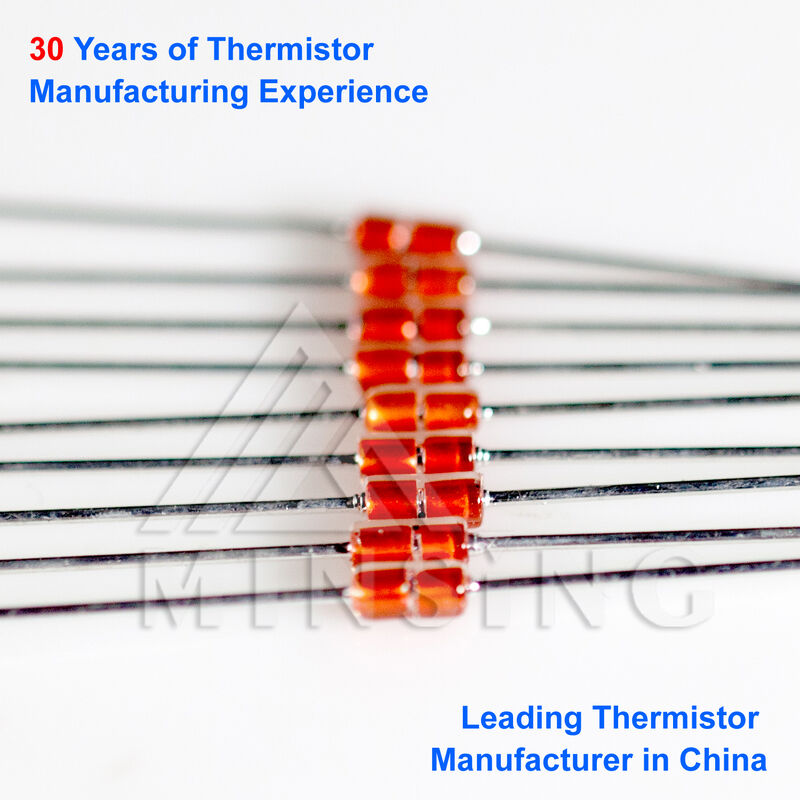

MF58 Axial Glass-Sealed NTC Thermistor, 100K ±1% High Precision, B3990
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | UL,REACH, ROHS |
| Model Number: | MF58, DO35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |

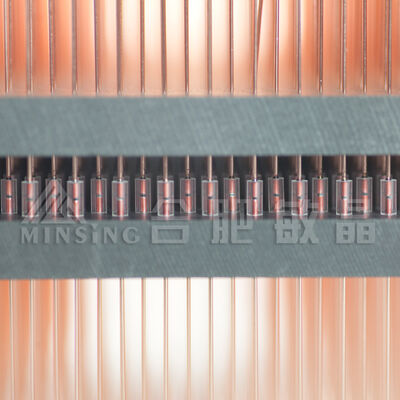

| Packaging Details: | Bulk, Tape |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Million Pieces Per Year |
|
Detail Information |
|||
| R25℃: | 100KΩ±1% | B Value: | 3990K±1% |
|---|---|---|---|
| Thermal Time Constant: | ≤10s (in Still Air) | Package Type: | Glass Encapsulated Axial Lead |
| Dissipation Factor: | ≥2.4mW/°C (in Still Air) | Lead Material: | Tin-plated Copper-clad Steel |
| Place Of Origin: | Anhui, China | Usage: | Home Appliances, Process Control Etc. |
| Highlight: | MF58 axial glass-sealed NTC thermistor,100K high precision NTC thermistor,B3990 glass encapsulated thermistor |
||
Product Description
MF58 Axial Glass-Sealed NTC Thermistor | High Precision 100K ±1%, B3990
It is equipped with tinned axial leads and then wrapped with purified glass.
Features:
- Glass encapsulated construction for superior thermal stability and moisture resistance
- Wide operating temperature range: -40°C to 250°C
- Resistance at 25°C: 100K ohm, B value: 3990K
- Fast thermal response time ≤10 seconds in still air
- Compact axial lead design for easy PCB mounting and integration
- Excellent long-term stability with minimal resistance drift

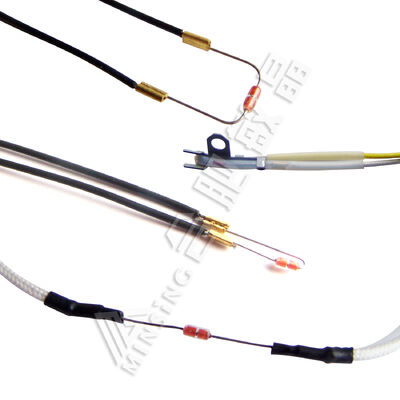

Applications:
Temperature compensation and detection for :
• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Liquid level detection and flow rate measurement
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
MJ MF 58 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF58 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF58-280-301□ | 0.3 | 2800 |
In still air ≥ 2.4mW/℃ |
In still air ≤ 10s |
-40+250℃ |
| MJMF58-338-202□ | 2 | 3380 | |||
| MJMF58-347/395-502□ | 5 | 3470/3950 | |||
| MJMF58-338/347-103□ | 10 | 3380/3470 | |||
| MJMF58-360//395-103□ | 10 | 3600/3950 | |||
| MJMF58-425-203□ | 20 | 4250 | |||
| MJMF58-395/399-473□ | 47 | 3950/3990 | |||
| MJMF58-395/399-503□ | 50 | 3950/3990 | |||
| MJMF58-395/399-104□ | 100 | 3950/3990 | |||
| MJMF58-420/425-204□ | 200 | 4200/4250 | |||
| MJMF58-440-474□ | 470 | 4400 | |||
| MJMF58-445-145□ | 1400 | 4450 |
