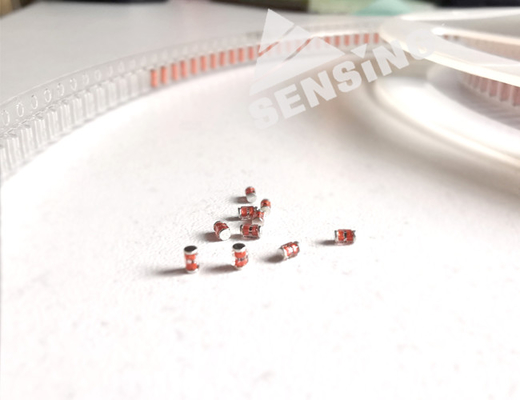

SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space

SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space
SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space

Large Image :  SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: UL,REACH, ROHS
Model Number: MF59
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 5Million Pieces Per Year
Detailed Product Description
Description: SMT NTC Thermistor Application: IGBT Module Temperature Monitoring

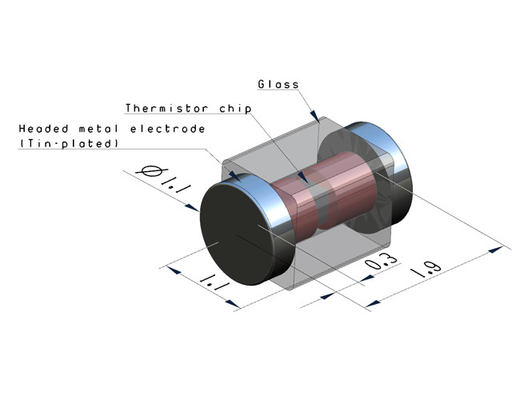

Diamention: Φ1.1×1.1×1.9mm Lead Wire: Leadless
R25℃: 0.3KΩ-4000KΩ B Value: 2800K-5000K
Response Time: Approx.5s Dissipation Factor: Approx. 1.3 MW/℃
High Light:

Ohm NTC Thermistor Temperature Sensor

,

SMT NTC Thermistor Temperature Sensor

,

SMT Glass Encapsulated NTC Thermistor

SMT Glass Encapsulated NTC Thermistor Suitable to be used in a narrower space



Features:

  • Metal electrodes for soldering
  • Excellent solder wettability with tin-plated electrodes
  • High-level heat resistance and environmental stability secured by glass encapsulation
  • Excellent solder dip resistance
  • The square glass prevents deviation or falling off while being mounted

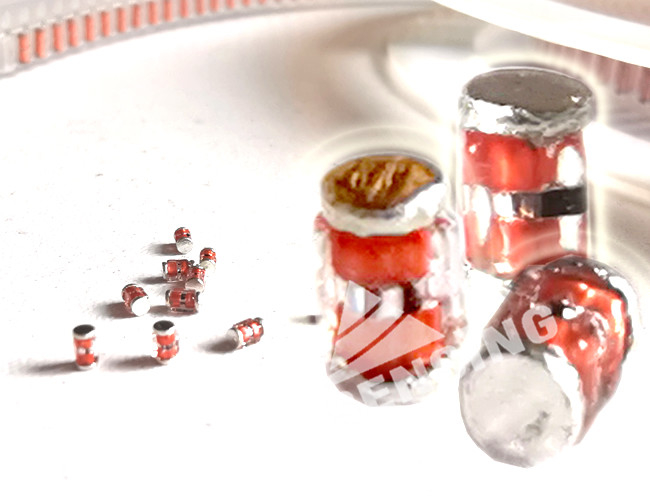

SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space 0





Applications:

  • Suitable to be used in a narrower space
  • Applications requiring high reliability where general-purpose chip thermistors cannot meet
  • Overheat prevention for industrial motors
  • Temperature assurance for IGBT units
  • Temperature assurance for surface mount electric / electronic parts

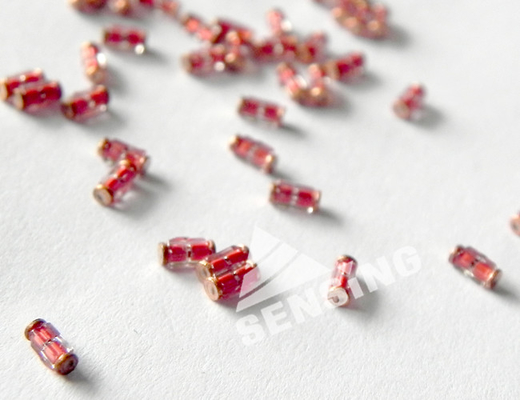

SMT Glass Encapsulated NTC Thermistor Suitable To Be Used In A Narrower Space 1

Specification Explain:



SJ MF 59A -3470 -103 J

① ② ③ ④ ⑤ ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Glass sealing type MF59A series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Specification R25℃ (KΩ) B25/50 (K) Disspation constant Thermal time constant Operating temp. range
SJMF59A-280-301□ 0.3 2800



















Approx.1.3mW/℃



















Approx.5s



















-50+200℃

SJMF59A-338-202□ 2 3380
SJMF59A-347/395-502□ 5 3470/3950
SJMF59A-338/347-103□ 10 3380/3470
SJMF59A-360//395-103□ 10 3600/3950
SJMF59A-425-203□ 20 4250
SJMF59A-395/399-473□ 47 3950/3990
SJMF59A-395/399-503□ 50 3950/3990
SJMF59A-395/399-104□ 100 3950/3990
SJMF59A-420/425-204□ 200 4200/4250
SJMF59A-440-474□ 470 4400
SJMF59A-445-145□ 1400 4450




FAQ:

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: Can we have our logo or company name to be printed on your products or the package?

A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.



Q: What adventages do you have?

A: Fast delivery and good service,stable quality with competitive price,strict management system.



Q: What can i do if i got a broken product from Hefei Sensing Electronic Co., Ltd?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.



Q: Are you trading company or manufacturer ?

A: We are a leading Chinese manufacturer and exporter of NTC Thermistor and Temperature Sensor for 28 years.



Q: How long is your delivery time?

A: Generally it is 2 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
