100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers For Toaster

100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers For Toaster

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Certification: UL,REACH, ROHS
Model Number: MFP-1

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk, Tape
Delivery Time: 2-7 work days
Payment Terms: T/T
Supply Ability: 5 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Description: Copper Crimp Sensor Usage: Home Appliances
R25℃:: 100kohm±1% B25/50: 3990±1%
Output: Resistance Value Temp. Range: -40~+250℃
Wires: PTFE,PFA,FEP Warranty: 36 Months
Highlight:

Precision Glass Encapsulated Thermistor

,

100K Glass Encapsulated Thermistor

,

Toaster Glass Encapsulated Thermistor

Product Description

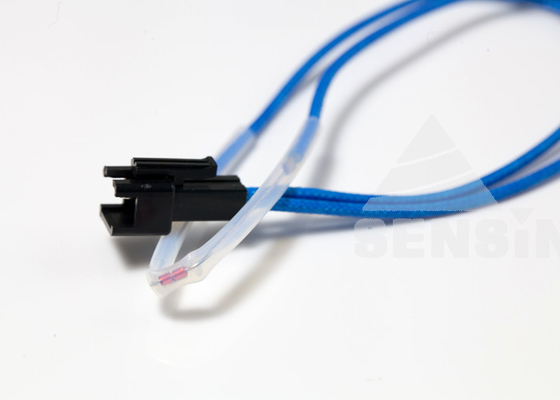

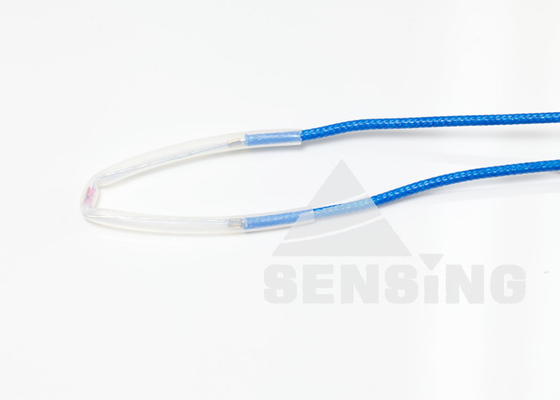

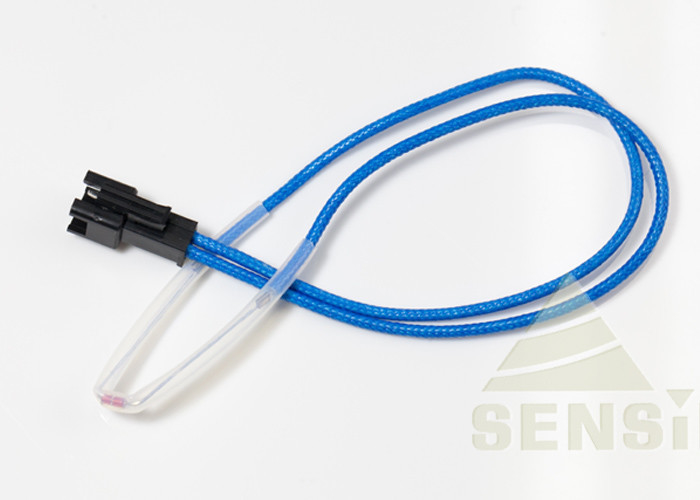

100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers for Toaster



Using NTC thermistor as temperature Minsing element, products can be customized according to different temperature environment or applications.



Key Specifications/Special Features :

1. Nominal resistance: 10KΩ, 50KΩ, 100KΩ at 25℃
2. B values: 3435K, 3950K, 3990K, 4200K
3. Measuring range: -40℃ to 250℃, other ranges on request

4. Cable material : PTFE,PFA,FEP

5. Withstand voltage : ≥1500VAC

6. Connector : can be customized



Wide Application:

1. Rice cooker, Incubator temperature control, Egg boiler, etc
2. Water heaters, Gas boiler, Electric kettles, Wall-hung gas boiler, Water dispensers
3. Toaster, Microwave oven, Air dryer, Roasting pan, Induction cooker, Electric hot plate
4. Iron, Garment steamer, Hair straighten, Coffee maker, Coffee pot
5. Battery, Heater, Warmer, Automobile air conditioners, Refrigerators, Freezers





100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers For Toaster 0



Specification Explain:

SJ MF P -1 -3950 -502 F

① ② ③ ④ ⑤ ⑥ ⑦



① Minsing Co.,Ltd

② NTC thermistor

③ Encapsulation probe

P: Anomalous probe encapsulated

④ Anomalous probe types:

1 .Copper crimp type, 2. Surface testing type, 3. Bullet type,

4 .Flange type, 5. Cap shell type, 6 .Screw thread type, 7. Clamp type

⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ

⑦ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers For Toaster 1



Specification:

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant

Operating

temp. range

SJMF□-□280-301□ 0.3 2800













ln still air ≥2.4mW/℃













ln still air ≤10s















-40~250℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

100K3990 Precision Glass Encapsulated NTC Thermistor Suppliers For Toaster 2



Competitive Advantage:

1. Factory supply directly

2. Completed certificates such as UL,RoHS,REACH,etc and high quality available

3. Quick delivery

4. Custom-made available

5. Improve after sales service system
