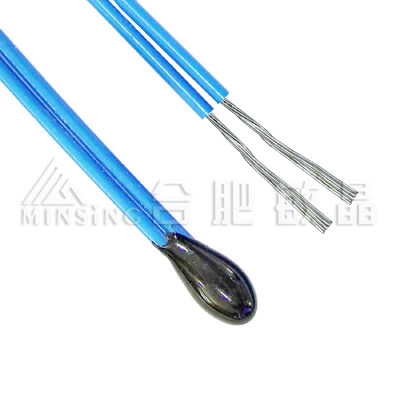

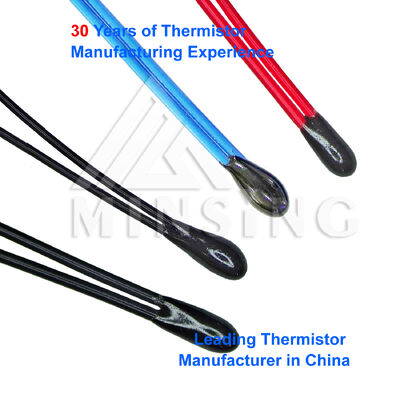

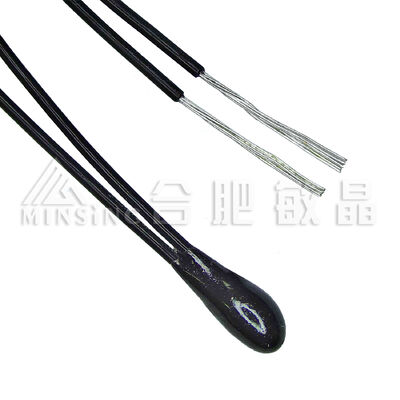

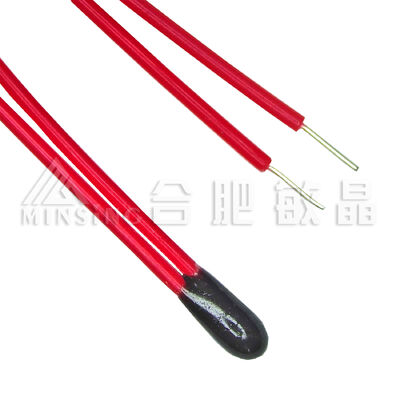

Automotive Temperature Sensor 0.5KΩ~2000KΩ Wide Resistance Range | Compact Structure, Easy Installation, IP-Rated Waterproofness
Product Details:
| Place of Origin: | China |
| Brand Name: | Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Epoxy Resin | Lead Wire: | PVC,Teflon, Kynar |
|---|---|---|---|
| Head Size: | Φ1.5-Φ4.5mm | Wire Length: | 15-2000mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 0.5%,1%,2%,3%,5% | HS Code: | 8533400000 |
| Warranty: | 36 Months | Package: | Anti-static Bag & Box |
Product Description
Automotive Temperature Sensor 0.5KΩ~2000KΩ Wide Resistance Range | Compact Structure, Easy Installation, IP-Rated Waterproofness
NTC Temperature Sensor is a detection element that feeds back the results to the system.
It is also called thermistor or probe. Its principle is the resistance decreases rapidly when the temperature rises. NTC(Negative Temperature CoeffiCient)refers to thermistor phenomenon and material with negative temperature coefficient, and the resistance decreases exponentially when the temperature rises. NTC Temperature sensors are widely used in household, automotive, industrial, medical and other industries.Generally speaking, temperature sensors are used in most electrical and electronic products that require temperature feedback.
Product Feature:
Custom size and wire configuration / Fast Response Time / Tight tolerance on resistance and Beta value
Application:
Assembly into probes / Liquid or gas temperature control and monitoring
Automotive (Air Conditioning, Cabin Climate Control/Management, External Temperature Monitoring,Heated Seats, Heated Steering Wheels, other)
Specification Explain:
MJ MF 5A-5 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-5 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 15s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
FAQ:
1.What information do I need to provide if I want to place an order?
We need the following information: resistance value, B value, accuracy, probe /head size, wire length, wire material and wire diameter/gauge, application, operating temperature.
2. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
3.Do you have any discount?
Yes, if you buy in large QTY.
4.What terms of payment are available?
T/T, Paypal, Western Union.
