Quick Response Automotive NTC Thermistor Temperature Probe For Air Conditioner

Quick Response Automotive NTC Thermistor Temperature Probe For Air Conditioner

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Certification: REACH ,ROHS
Model Number: MFP-3

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Head Material: SUS, Cu, Cu/ NI, Al...Tube Lead Wire: PVC , XLPE, ...
Head Size: Customized To Your Demands Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 0.5%,1%,2%,3%,5% B Tolerance: 0.5%,1%, 2%,3%,5%
Highlight:

Air Conditioner Automotive NTC Thermistor

,

SUS Automotive NTC Thermistor

,

Tip Sensitive Automotive NTC Thermistor

Product Description

Automotive NTC Thermistor, Temperature Probe , Tip-Sensitive , Quick Response , for Auto.Air-condintioner



Product Feature:

Temperature sensor design and production

Detected liquid measurement / Tip-sensitive / Quick response



Application:

Liquid Detection / Water heater / Footbath machine /  Closestool

Dryer / Sanitary ware / Incubator / Induction cooker / Auto air-conditioner

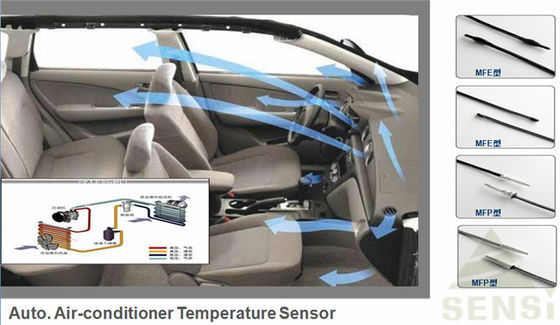

Quick Response Automotive NTC Thermistor Temperature Probe For Air Conditioner 0



Specification Explain:

SJ     MF     P     -3     -3950    -502      F

①      ②     ③     ④        ⑤         ⑥       ⑦



①Minsing Co.,Ltd

②NTC thermistor

③Encapsulation probe

    P: Anomalous probe encapsulated

④Anomalous probe types:

   1. Copper crimp type, 2. Surface testing type, 3 .Bullet type,

   4. Flange type, 5 .Cap shell type, 6. Screw thread type, 7. Clamp type

⑤B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ

⑦R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Specification:

Specification R25 (KΩ) B25/50 (K)   Disspation      constant  Thermal time   constant   Operating temp. range
SJMF□-□280-301□ 0.3 2800













ln still air 2.1~15mW/℃













ln still air 25~65s















-40~150℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

More detailed data for reference,please visit our website:www.Minsing.com.cn
