Epoxy Coated Automotive NTC Thermistor High Accuracy Steady Operating
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | REACH ,ROHS |
| Model Number: | MF5A-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Somar Epoxy | Lead Wire: | PFA |
|---|---|---|---|
| Head Size: | Φ1.5-Φ4.5mm | Wire Length: | 15-2000mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 0.5%,1%,2%,3%,5% | B Tolerance: | 0.5%,1%, 2%,3%,5% |
| Highlight: | Epoxy Coated Automotive NTC Thermistor,2000mm Wire Automotive Temperature Sensor,4.5mm Head Automotive Temperature Sensor |
||
Product Description
Steady Operating for Long Time , NTC thermistor , 10Kohm 3760 , Widely Used in Automobile Industry

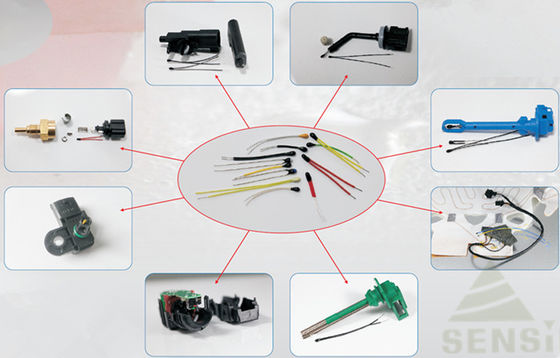

Application:
Auto. seat heating system / Auto. steering wheel heating system
Auto. coolant water system / Auto. diesel fuel system / Auto. evaporator system
Auto. transmission system / Auto. intake and outlet air system / Auto.Air-condintioner
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 15s |
-40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| SJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
