2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting

2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting
2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting
video play

Large Image :  2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: UL,REACH, ROHS
Model Number: MF58, DO35
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk, Tape
Delivery Time: 2-7 work days
Payment Terms: T/T
Supply Ability: 100 Million Pieces Per Year
Detailed Product Description
Name: Glass Encapsulated NTC Thermistor Usuage: Home Appliances
Head Size: Φ1.8mm Wire Length: 28mm
R25℃: 0.3KΩ-4000KΩ B Value: 2500K-5000K
R Tolerance: 1%, 2%,3%,5% B Tolerance: 1%, 2%,3%,5%
High Light:

5000K Glass Encapsulated NTC Thermistor

,

2500K Glass Encapsulated NTC Thermistor

,

2500K ntc power thermistor

2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting



Glass Encapsulated NTC Thermistor Introduction

Glass Encapsulated NTC Thermistor is used in general purpose temperature measurement solutions for residential, industrial, and commercial applications. The thermistor element is epoxied into the Stainless Steel probe that is quite sensitive and responds quickly to changes in the temperature. The sensor element used is a 10K Thermistor and can be used with many popular brands of RT manufacturers.

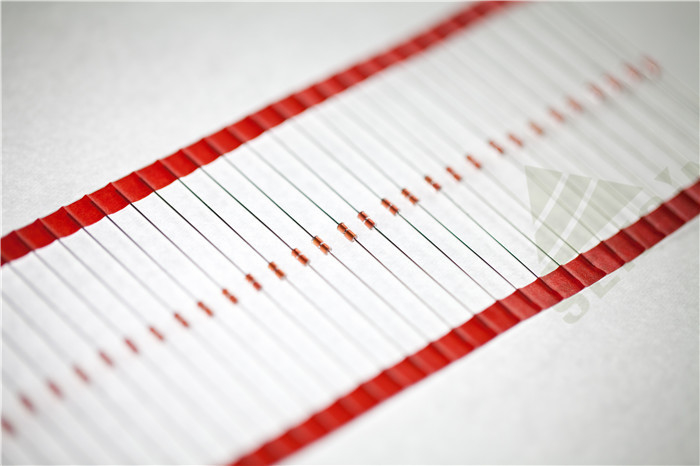

2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting 02500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting 1



Features:

• Stability, high reliability

• Solution to circuit cost reduction

• Resistance range: 0.3 ~ 4000KΩ

• High resistance precision

• Due to the use of glass packaging, can be used at high temperature and humidity and other harsh environments

• Small size, light weight, rugged, easy in Automated Installer

• Thermal sensing quickly

• Working temperature range: -55 ℃ ~ + 300 ℃

• Body size: Φ1.8mm X 3.8mm
• Agency recognition:UL/cUL
• RoHS compliant

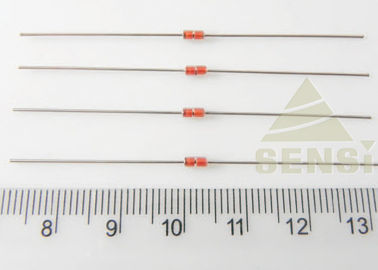

2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting 2





Household Appliance:

Air conditioner / Induction cooker / Soya-bean milk maker / Electric iron / Microwave oven

Washing machine / Computer/Temperature humidity meter / Electrical calendar / Electronic toy



Medical Appliance: Health care / Hair beauty Industrial Control:Temperature control meter

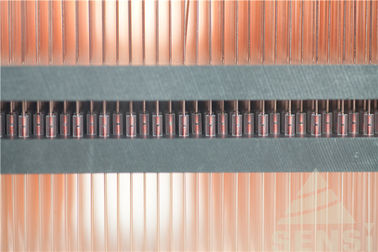

2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting 3





Specification Explain:



SJ  MF  58  -3470  -103 J

①   ②   ③     ④       ⑤  ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Glass sealing type MF58 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)





Specification R25℃ (KΩ) B25/50℃ (K)   Disspation      constant  Thermal time   constant   Operating temp. range
SJMF58-280-301□ 0.3 2800

                                                                                                                 In still air       ≥ 2.4mW/℃











 In still air

 ≤ 10s











-55~+300℃

SJMF58-338-202□ 2 3380
SJMF58-347/395-502□ 5 3470/3950
SJMF58-338/347-103□ 10 3380/3470
SJMF58-360//395-103□ 10 3600/3950
SJMF58-425-203□ 20 4250
SJMF58-395/399-473□ 47 3950/3990
SJMF58-395/399-503□ 50 3950/3990
SJMF58-395/399-104□ 100 3950/3990
SJMF58-420/425-204□ 200 4200/4250
SJMF58-440-474□ 470 4400
SJMF58-445-145□ 1400 4450



2500K-5000K Taped Glass Encapsulated NTC Thermistor For Automatic Mounting 4

Hefei Sensing Electronic Co., Ltd is one of the most professional NTC Thermistor and Temperature Sensor manufacturers and programme suppliers in China for about 28 years. Our products are widely used for the household electric appliances and auto industry. Our team will serve for you from the beginning of your source to the very end of the shipment. We are exporter based on factory so that the cost can be saved directly for you .
