Radial Epoxy Head 10kohm 3950 NTC Temperature Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | IATF16949,UL,REACH ,ROHS |
| Model Number: | MFE-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 6 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Epoxy Resin | Lead Wire: | PVC , XLPE, Teflon... |
|---|---|---|---|
| Head Size: | Φ3.5-Φ6.5mm | Wire Length: | Customized To Your Demands |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%,2%,3%,5% |
| High Light: | Radial Epoxy Head Temperature Sensor,10kohm NTC Temperature Sensor,6.5mm Head NTC Temperature Sensor |
||
Product Description

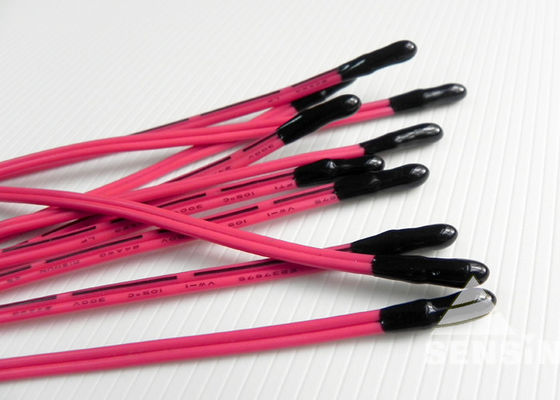

Radial Epoxy Head NTC 10kohm 3950, 1% Temperature Sensor , with Colorful PVC Wire
Product Feature:
Wide operating temperature range / High stability and reliability
Fast response/ Air temperature measurement
Application:
Auto Air-condintioner / Dryer / Air-conditioner / Industrial manufacture /Electronic appliance
Specification Explain:
SJ MF E -1 -3950 -502 F
① ② ③ ④ ⑤ ⑥ ⑦
① Sensing Co.,Ltd
② NTC thermistor
③ Encapsulation probe:
E: Epoxy encapsulated
④ Epoxy Types: 1. Water drop type, 2 .The gourd type
⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950
⑥ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ
⑦ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF□-□280-301□ | 0.3 | 2800 |
ln still air 2.1~15mW/℃ |
ln still air 25~65s |
-40～+150℃ |
| SJMF□-□338/350-202□ | 2 | 3380/3500 | |||
|
SJMF□-□327/338-502□ |
5 | 3270/3380 | |||
| SJMF□-□327/338-103□ | 10 | 3270/3380 | |||
| SJMF□-□347/395-103□ | 10 | 347/3950 | |||
| SJMF□-□395-203□ | 20 | 3950 | |||
| SJMF□-□395/399-473□ | 47 | 3950/3990 | |||
| SJMF□-□395/399-503□ | 50 | 3950/3990 | |||
| SJMF□-□395/399-104□ | 100 | 3950/3990 | |||
| SJMF□-□420/425-204□ | 200 | 4200/4250 | |||
| SJMF□-□440-474□ | 470 | 4400 | |||
| SJMF□-□445/453-145□ | 1400 | 4450/4530 |
The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
