• Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level
  • Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level
Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level

Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Certification: IATF16949/ISO9001/RoHS
Model Number: MFT-3

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: Anti-static bag & box
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 50 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Voltage Withstanding: 1800V AC 10mA 1sec Theory: Resistance Changes With Ambient Temperature
Housing Material: Plastic TPE Accuracy: ±0.5℃
Head Size: TPE Φ5×20mm B25/85: 3977±1%
Insulation Resistance: DC1000V≥100MΩ 1min R25: 10kΩ±1%
Highlight:

TPE 5×20mm Temperature Monitor

,

IP68 Temperature Monitor

,

Water Resistant NTC Temperature Sensor

Product Description

 Water-Resistant  TPE Φ5×20mm Temperature Monitor IP68

This Waterproof Temperature Sensor is an ideal choice for any environment that requires reliable monitoring. Its original manufacturer ensures high-quality components and superior performance. This temperature sensor features a TPE Φ5×20mm head size and offers an accuracy of ±0.5℃ and a B25/85 of 3977±1%. It is designed with a waterproof heat detector, a water-resistant temperature monitor, and a watertight temperature probe, making it an ideal choice for any environment that requires reliable and accurate temperature monitoring.





FEATURES:



1. TPE Overmolded probe with probe head dimensions of Ø 5x 20mm



2. 24AWG double insulated TPE cable



3. IP 68 Rated



4. Industrial Process Control



5. Available in a variety of connector types



6. Customized tolerances and resistances available on request



7. RoHS Compliant

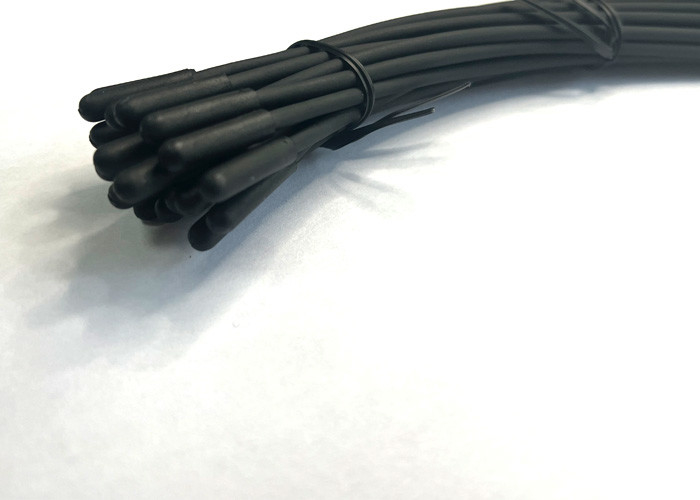

Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level 0

Technical Parameters:

Name Waterproof Temperature Sensor
Application Industrial Automation
Operating Temperature -40℃ To +120℃
Lead Wire TPE 2×24AWG
R25 10kΩ±1%
Voltage withstanding 1800V AC 10mA 1sec
Supplier Type Original Manufacturer, Retailer, Other
Housing Material Plastic TPE
Protection Level IP68
B25/85 3977±1%
Keywords Watertight Temperature Probe, Waterproof Heat Detector, Moisture-Proof Temperature Monitor

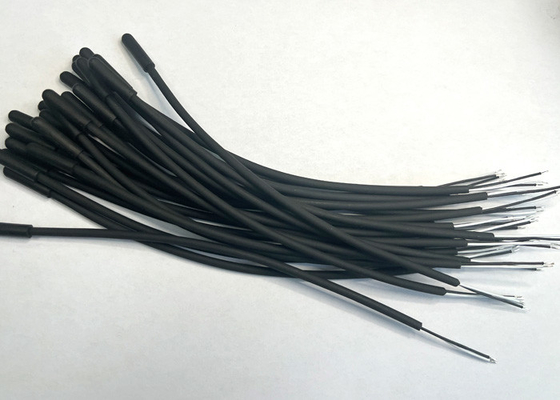

Water Resistant TPE 5×20mm Temperature Monitor IP68 Protection Level 1

How to order?



1. The application of the NTC thermistor or temperature sensor:__________



2. The range of operation temperature:___°c to ___°c



3.The dimension and the drawing of the Thermistor



4. The R value:_____K ohm ±________% at _____°c,



5. The B value: (_____°c/____°c) = ______K ± _____%



6. Quantity demanded: _________ pcs



FAQ:

Q:Are you importer or manufacturer?
A:We are manufacturer.



Q:Why you have to choose us?
A:High quality assurance, the most competitive price and fast shipping.





Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: Can we have our logo or company name to be printed on your products or the package?

A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.



Q: What adventages do you have?

A: Fast delivery and good service.Stable quality with competitive price.Strict management system.









NTC Temperature Sensor is a detection element that feeds back the results to the system.It is also called thermistor or probe. Its principle is the resistance decreases rapidly when the temperature rises. NTC(Negative Temperature CoeffiCient)refers to thermistor phenomenon and material with negative temperature coefficient, and the resistance decreases exponentially when the temperature rises. NTC Temperature sensors are widely used in household, automotive, industrial, medical and other industries.Generally speaking, temperature sensors are used in most electrical and electronic products that require temperature feedback.
