• Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm
  • Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm
Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm

Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Model Number: MFT-3
Get Best Price Contact Now

Detail Information

Theory: Resistance Changes With Ambient Temperature Supplier Type: Original Manufacturer, Retailer, Other
Accuracy: ±0.5℃ Insulation Resistance: DC1000V≥100MΩ 1min
Voltage Withstanding: 1800V AC 10mA 1sec Operating Temperature: -40℃ To +110℃
R25: 10kΩ±1% Name: Waterproof Temperature Sensor
Highlight:

NTC Probe Temperature Reader

,

Single Insulated Waterproof Temperature Sensor

,

OM Probe Waterproof Temperature Sensor

Product Description

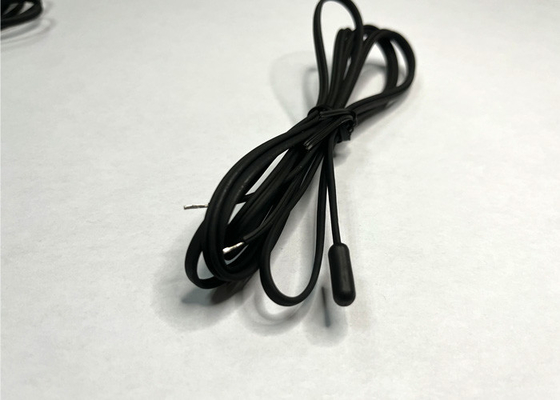

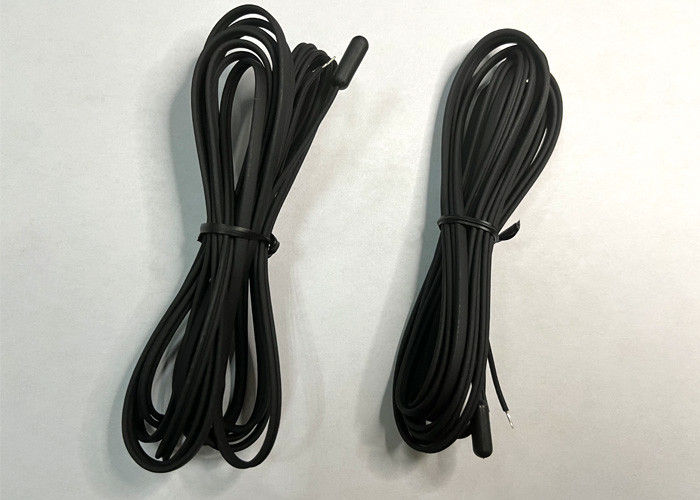

Single Insulated NTC TPE OM Probe Ø6 x 5 x 15mm Temperature Sensor

Introducing the Watertight Temperature Probe, the perfect waterproof heat detector for all your temperature Minsing needs. This Watertight Temperature Probe is made with a TPE plastic housing which is highly durable and waterproof. It also features a Φ6×5×15mm head size for precise temperature detection. With an accuracy of ±0.5℃, you can be sure the readings you get are reliable and accurate. What's more, this waterproof temperature sensor also has an impressive IP67 protection level, making it an ideal choice for any application in harsh environments.



As an original manufacturer and retailer, we are proud to offer this Waterproof Temperature Sensor to our customers. It is perfect for measuring temperature in a wide range of applications, such as industrial and agricultural settings. Its waterproof and robust design make it a great choice for any environment.



Features:

• TPE Overmolded probe with probe headdimensions of Ø 6 x5 x 15mm

• 24AWG Zipcord TPE cable

• IP67 Rated

• Insulation Resistance DC1000V≥100MΩ 1min

• Available in a variety of connector types

• Customized tolerances and resistances available on request

• Temperature range -40ºC to +110ºC

• Ideal from ambient air Minsing in building management applications, heatercontrols, air conditioning

RoHS Compliant



APPLICATIONS:

• Building Management Applications

• Heater Control

• Air Conditioning



Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm 0

Technical Parameters:

Parameter Specification
B25/85 3435±1%
Theory Resistance Changes With Ambient Temperature
Application Industrial Automation
R25 10kΩ±1%
Lead Wire TPE Flat  2×24AWG
Insulation Resistance DC1000V≥100MΩ 1min
Protection Level IP67
Temperature Range -40℃ To +110℃
Accuracy ±0.5℃
Voltage withstanding 1800V AC 10mA 1sec
Keywords Impermeable Temperature Reader, Moisture-Proof Temperature Monitor
Single Insulated NTC TPE OM Probe Waterproof Temperature Sensor 6 X 5 X 15mm 1

Applications:

The Hefei Minsing Water-Resistant Temperature Monitor, or MFT-3, is an innovative, moisture-proof temperature monitor designed and manufactured in China. With a ±0.5℃ accuracy and a resistance that changes with ambient temperature, this monitor is ideal for a variety of applications. Featuring a voltage withstanding of 1800V AC 10mA 1sec and a 2×24AWG TPE lead wire, the MFT-3 is designed for long-term operation in harsh environments. Additionally, its 10kΩ±1% R25 rating ensures optimal performance and reliability. With its ability to withstand high levels of moisture and humidity, the Hefei Minsing Water-Resistant Temperature Monitor is the perfect choice for any application requiring a waterproof temperature sensor.



Packing and Shipping:

Packaging and Shipping
The Waterproof Temperature Sensor is packaged in a sealed plastic bag, then placed into a cardboard box. The box is then filled with packaging peanuts to secure the sensor. The box is closed and sealed with packing tape. Then, the box is placed into another box with more packaging peanuts for extra security. Finally, the box is shipped with a trusted courier service.
