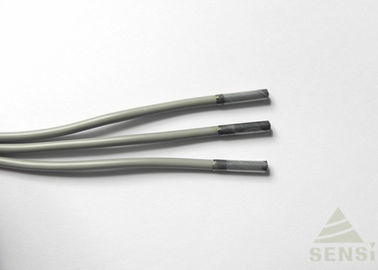

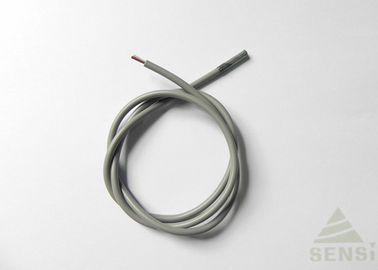

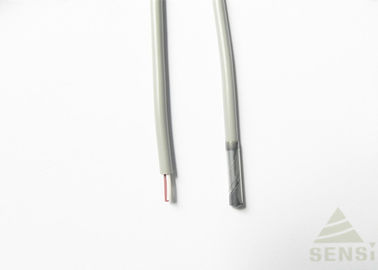

Cylinder Mylar Material NTC Temp. Probe Epoxy Sealed Head Size Customized

Cylinder Mylar Material NTC Temp. Probe Epoxy Sealed Head Size Customized

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Certification: REACH ,ROHS
Model Number: MFT-1

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Head Material: SUS, Cu, Cu/ NI, Al...Tube Lead Wire: PVC , XLPE, ...
Head Size: Customized To Your Demands Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%
Highlight:

ntc type temperature sensor

,

temperature probe sensor

,

Cylinder Mylar NTC Temperature Sensor

Product Description

Cylinder Mylar Material NTC Temp. Probe , Epoxy Sealed , Head Size Customized, For Various Temp. Control



Product Feature:



Wide operating temperature range/ High stability and reliability

Nice looking / Extensive application/ Good protection



Application:



Air-Conditioner / Oven / Refrigerator / Freezer

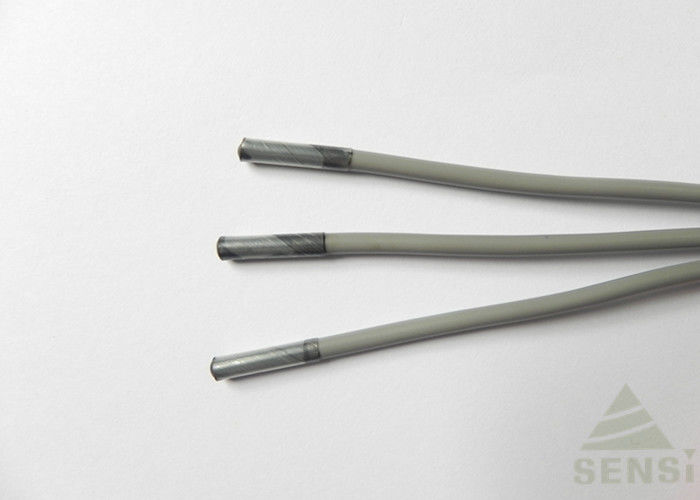

Cylinder Mylar Material NTC Temp. Probe Epoxy Sealed Head Size Customized 0  Cylinder Mylar Material NTC Temp. Probe Epoxy Sealed Head Size Customized 1Specification Explain:



SJ     MF        -1     -3950     -502     F

①      ②     ③     ④         ⑤         ⑥      ⑦



①Minsing Co.,Ltd

②NTC thermistor

③Encapsulation probe

   T: Cylinder tube encapsulated

Cylinder tube types: 1 Metal type,  2 Plastic type , 3 Over molded type

⑤B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ

⑦R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Specification:

Specification R25 (KΩ) B25/50 (K)   Disspation       constant  Thermal time constant  Operating temp. range
SJMF□-□280-301□ 0.3 2800













 ln still air  2.1~15mW/℃













ln still air   25~65s















-40~+250℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

More detailed data for reference,please visit our website: www.Minsing.com.cn
