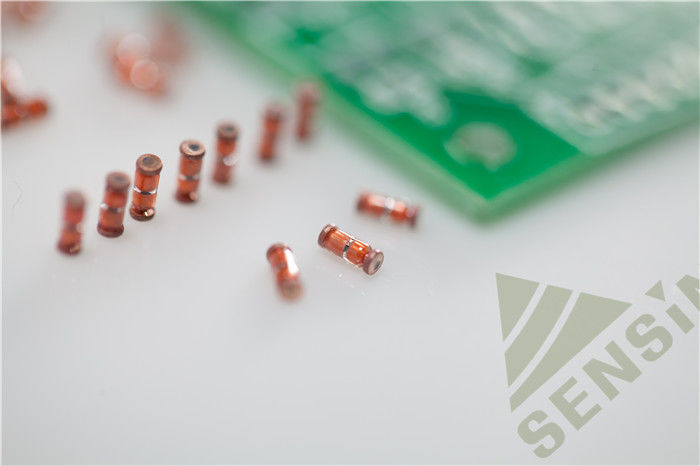

Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation

Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation
Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation

Large Image :  Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: UL,REACH, ROHS
Model Number: MF59
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 5Million Pieces Per Year
Detailed Product Description
Head Material: Glass Lead Wire: Dumet Wire
Head Size: Φ1.5mm Wire Length: 3.6mm
R25℃: 0.3KΩ-4000KΩ B Value: 2800K-5000K
R Tolerance: 1%,2%,3%,5% B Tolerance: 1%, 2%,3%,5%
High Light:

glass encapsulated thermistor

,

glass ntc thermistor

,

Miniature Glass Encapsulated NTC Thermistor

Miniature Design , Glass Sealed NTC Thermistor without Leads , Convenient for SMT Automatic Installation



Product Feature:

Glass encapsulated / Heat-resistant / Miniature designed

High stability and reliability / Reliable and economical



Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant Thermal time constant OperatiNG temp. range





SJMF59





0.3~4000





2800~5000





Approx.2mW/℃





Approx.8s





-55~+200





Household Appliance:

Air conditioner / Induction cooker / Soya-bean milk maker / Electric iron / Microwave oven

Washing machine / Computer/Temperature humidity meter / Electrical calendar / Electronic toy



Medical Appliance: Health care / Hair beauty Industrial Control:Temperature control meter





Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation 0 Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation 1





Specification Explain:



SJ  MF  59  -3470  -103 J

①   ②   ③     ④       ⑤  ⑥



①Sensing Co.,Ltd

②NTC thermistor

③Glass sealing type MF59 series

④B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Miniature Design Glass Encapsulated NTC Thermistor For SMT Automatic Installation 2



FAQ:



Q: What can i do if i got a broken product from Hefei Sensing Electronic Co., Ltd?
A: First of all please tell us as soon as possible after we will send a new one to you immediately but please send the broken product to us .you don't have to worry about the carriage charge we will pay for that.



Q:Are you importer or manufacturer?
A:We are manufacturer.



Q:Why you have to choose us?
A:High quality assurance, the most competitive price and fast shipping.



Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q: Can we have our logo or company name to be printed on your products or the package?

A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.



Q: What adventages do you have?

A: Fast delivery and good service,stable quality with competitive price,strict management system.
