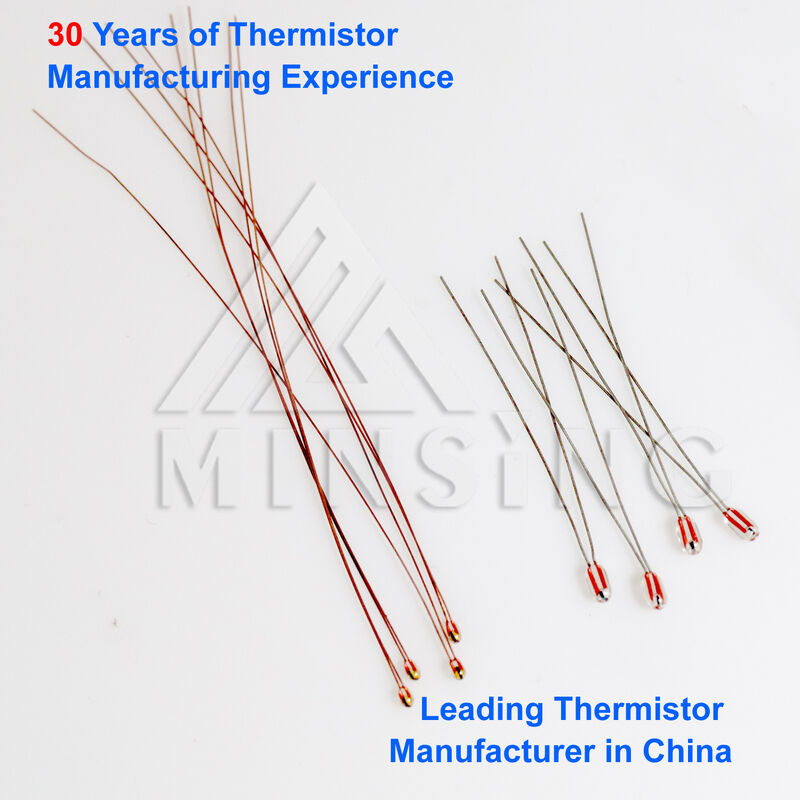

Fixed Structure Negative Temperature Coefficient Thermistor, Radial Glass-sealed NTC Thermistor
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | UL,REACH, ROHS |
| Model Number: | MF57 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Glass | Lead Wire: | Dumet Wire |
|---|---|---|---|
| Head Size: | Φ1.25 / Φ1.85mm | Wire Length: | 32mm /66mm |
| R25℃: | 0.3KΩ-4000KΩ | B Value: | 2800K-5000K |
| R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%, 2%,3%,5% |
Product Description
Fixed Structure Negative Temperature Coefficient Thermistor, Radial Glass-sealed NTC Thermistor
Features:
- Chip with gold electrodes
- Resistance spec. applicable in a wide temperature range
- Covers a wide temperature control range
- High-level heat resistance and environmental stability secured by glass encapsulation
- Long-term stability in resistance
- High-volume supply in high quality by integrated automatic production
Applications:
For equipment that requires high reliability in temperature measurement and control in addition to the following equipment
- Electronic thermometers
- Air conditioners
- Hot water boilers
- Home appliances
- Automobiles (water, intake air, ambient, battery, motor and fuel)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
|
MJMF57 |
0.3~4000 |
2800~5000 |
Approx. 2mW/℃ |
Approx.8s |
-50～+300℃ |
Specification Explain:
MJ MF 57 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF57 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
How to order?
1. The application of the NTC thermistor or temperature sensor:__________
2. The range of operation temperature:___°c to ___°c
3.The dimension and the drawing of the Thermistor
4. The R value:_____K ohm ±________% at _____°c,
5. The B value: (_____°c/____°c) = ______K ± _____%
6. Quantity demanded: _________ pcs
Packing&Delivery:
All products, we will pack them carefully, items will be pakaged with PP bag, carton or any other
protective stuff if necessarily, then placed in pallets or plywood case. [Fit in international shipment].
To make it faster, you can also choose to ship the goods by air, such as DHL, UPS, Fedex, TNT and so on.
