Theory: | Resistance Sensor | Output: | Analog Sensor |
---|---|---|---|
Lead Wire: | PVC , XLPE, Teflon... | Wire Length: | Customized To Your Demands |
R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%, 2%,3%,5% |
High Light: | NTC Thermistor Flange Temperature Sensor,Fast Response Flange Temperature Sensor,AWG20 Flange Temperature Sensor |

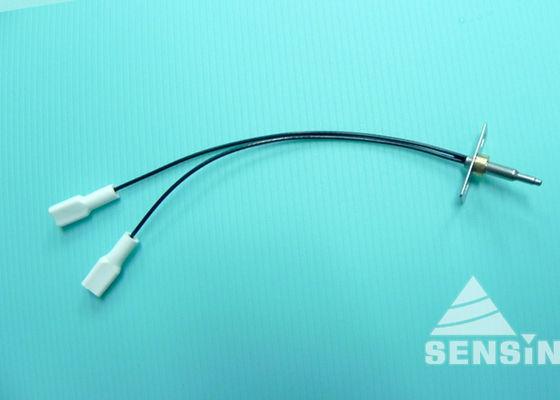

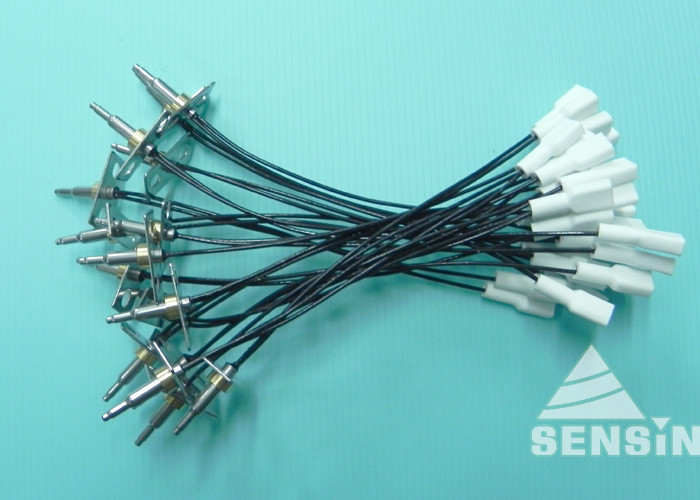

1-4s Fast Response NTC Thermistor Temperature Sensing Flange Probe for Coffee Machine Drinking Water Heater Thermostat
Technical Data:
Items | Product Parameters |
Sensing component | NTC Thermistor various R and B value on request |
Probe/ Shell materials | SUS304/ Brass in Sharped Bullet Flange shape |
Wire materials | Gauge AWG28~AWG20 PVC, XLPE, Silicone, Teflon,etc. |
Operating temp. range | -40°C to +250°C various |
Thermal time constant | 1-4s ln stirred water |
Disspation factor | 2.1~15mW/℃ ln still air |
Long-term stability | Drift ≤ 3% after 1000h heat and cold store (125°C / -40°C) |
Voltage withstanding | 1800VAC |
Insulation resistance | ≥100MΩ 500VDC |
Product Feature:
High accuracy and fast response, easy installation
Customization meets every special requirement
Related Products:
The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
