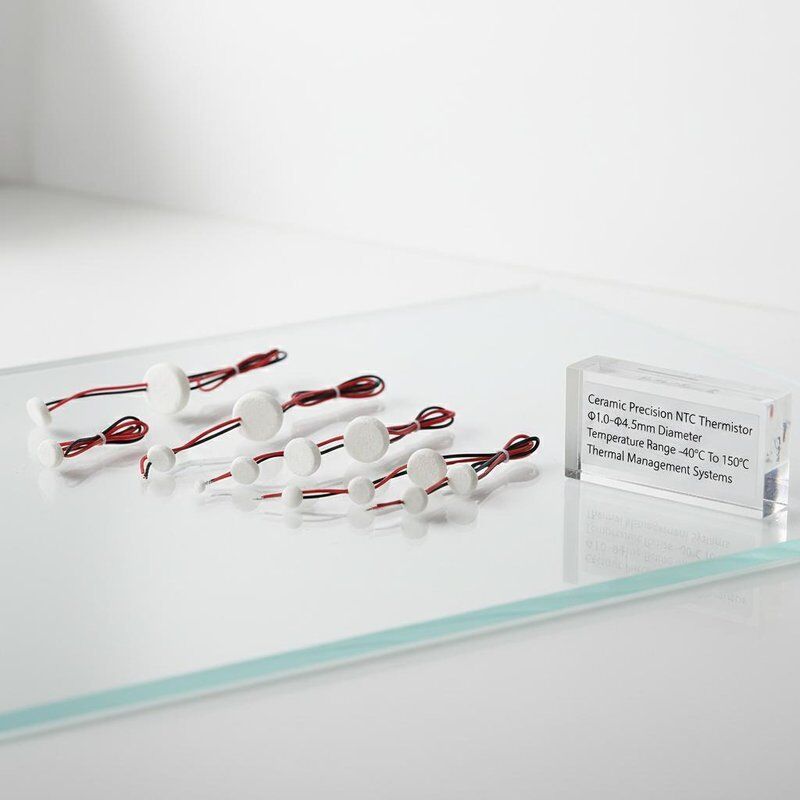

Ceramic Precision NTC Thermistor Φ1.0-Φ4.5mm Diameter Temperature Range –40°C To 150°C Designed for Thermal Management Systems
Product Details:
| Place of Origin: | Hefei Anhui China |
| Brand Name: | Hefei Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-3 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-static bag & box |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Output Signal Type: | Analog Type | Material : | Ceramic |
|---|---|---|---|
| Resistance Range: | 0.5KΩ-2000KΩ | Thermal Time Constant: | ≤10S |
| Tolerance: | ±0.5%,1%,2%,3%,5% | Size: | Φ1.0-Φ4.5mm |
| Product Name: | Precision NTC Thermistor | Supplier Type: | Original Manufacturer, Retailer,other |
| Highlight: | Ceramic NTC thermistor for thermal management,Precision thermistor –40°C to 150°C,NTC temperature sensor Φ1.0-Φ4.5mm |
||
Product Description
Product Description:
The Precision NTC Thermistor is a highly accurate temperature measuring device designed to deliver reliable and consistent performance across a wide range of applications. Featuring a Negative Temperature Coefficient (NTC), this thermistor's resistance decreases predictably as temperature rises, enabling precise temperature monitoring and control. With a resistance range spanning from 0.5KΩ to 2000KΩ, it offers versatile compatibility for various electronic and industrial systems requiring temperature sensing solutions.
One of the standout attributes of this Precision NTC Thermistor is its exceptional tolerance levels. Available in ±0.5%, 1%, 2%, 3%, and 5% tolerance options, it ensures high accuracy and minimal deviation from nominal resistance values. This fine tolerance capability is crucial for applications demanding stringent thermal management and precise temperature measurement, such as medical devices, HVAC systems, and automotive electronics. The low tolerance options significantly reduce errors, enhancing the reliability of temperature readings and enabling better system control.
The thermistor is designed for easy installation with a DIP resistor format, making it convenient for through-hole mounting on printed circuit boards (PCBs). This installation method ensures secure mechanical and electrical connections, facilitating seamless integration into existing systems. The DIP resistor configuration also supports efficient assembly processes, allowing manufacturers to maintain production efficiency without compromising performance.
As an analog type output signal device, the Precision NTC Thermistor provides continuous resistance changes in response to temperature variations. This analog characteristic allows it to be used in conjunction with various analog-to-digital converters (ADCs) and microcontrollers, making it an ideal component for temperature sensing circuits. The analog output ensures smooth and real-time monitoring of temperature fluctuations, which is essential for applications requiring dynamic thermal management and precise feedback loops.
The thermistor's construction and materials are carefully selected to ensure stability and durability under different environmental conditions. Its robust design enables it to maintain performance over extended periods, even in demanding industrial environments. This reliability makes the Precision NTC Thermistor a preferred choice for applications ranging from consumer electronics to sophisticated industrial automation systems.
In addition to its technical advantages, the product complies with international standards and regulations, as indicated by its HS Code 8533400000. This classification confirms the thermistor’s suitability for global distribution and use in various markets, ensuring that it meets quality and safety requirements expected by industry professionals and end-users alike.
To summarize, the Precision NTC Thermistor combines highly accurate temperature measurement capabilities with versatile resistance options and reliable installation features. Its Negative Temperature Coefficient characteristic enables precise temperature detection, making it an indispensable temperature measuring device for engineers and designers. Whether used in temperature control circuits, environmental monitoring, or any application requiring dependable thermal sensing, this thermistor delivers consistent and accurate performance.
Choosing the Precision NTC Thermistor means investing in a component that prioritizes accuracy, stability, and ease of integration. Its wide resistance range, fine tolerance options, and analog signal output make it adaptable to a broad spectrum of temperature sensing needs. By leveraging this thermistor, systems can achieve improved thermal regulation, enhanced safety, and optimized operational efficiency, underscoring its value in modern electronic design and industrial applications.
Features:
- Product Name: Precision NTC Thermistor
- Material: High-quality Ceramic for enhanced durability
- Measuring Medium: Temperature, ideal for accurate temperature measurement
- Installation Type: DIP Resistor for easy and secure mounting
- Size Range: Available in Φ1.0 to Φ4.5mm to suit various applications
- Contact: Reliable Contact for consistent performance
- Function: Negative Temperature Coefficient, ensuring precise thermal response
- Applications: Serves as a Temperature Measuring Device and Thermistor Temperature Detector
Technical Parameters:
| Product Name | Precision NTC Thermistor |
| Measuring Medium | Temperature |
| Size | Φ1.0-Φ4.5mm |
| Output Signal Type | Analog Type |
| Supplier Type | Original Manufacturer, Retailer, other |
| Thermal Time Constant | ≤10S |
| Resistance Range | 0.5KΩ-2000KΩ |
| Material | Ceramic |
| Tolerance | ±0.5%, 1%, 2%, 3%, 5% |
| Installation | DIP Resistor |
| Description | Temperature Measuring Device, Precision Temperature Sensor, Temperature Measuring Device |
Applications:
The Precision NTC Thermistor, model MF5A-3 Series, manufactured by Hefei Minsing in Hefei Anhui China, is a highly reliable and accurate temperature measuring device designed to meet the stringent demands of various industrial and commercial applications. This precision temperature sensor operates based on the Negative Temperature Coefficient (NTC) principle, ensuring fast response times and stable performance across a broad temperature range from –40°C to +150°C. With its compact size options ranging from Φ1.0mm to Φ4.5mm and an IP67 rating, the MF5A-3 Series thermistor is perfectly suited for environments where durability and precision are paramount.
One of the primary application occasions for this Precision NTC Thermistor is in automotive systems, where it can be used for engine temperature monitoring, battery management, and climate control systems. Its IATF16949 certification guarantees compliance with automotive industry standards, making it an ideal choice for vehicle manufacturers seeking high-quality temperature measurement solutions. Additionally, the sensor’s robustness and anti-static packaging ensure it can withstand harsh conditions during transportation and installation.
In industrial automation, the MF5A-3 Series thermistor excels in controlling and monitoring temperature-sensitive processes. It is widely used in HVAC systems, industrial machinery, and robotics where precise temperature feedback is critical for optimal operation and safety. The thermistor’s high supply ability of 50 million pieces per year and a minimum order quantity of 100pcs make it suitable for large-scale production and deployment.
Medical equipment also benefits from the accuracy and reliability of the Hefei Minsing Precision NTC Thermistor. It is employed in devices such as incubators, patient monitoring systems, and sterilization equipment, where precise temperature measurement is vital for patient safety and effective treatment. The CE and RoHS certifications further ensure that the product adheres to international health and environmental standards.
Other scenarios include consumer electronics, home appliances, and renewable energy systems, where temperature control and monitoring are essential for performance and longevity. The negotiable pricing, coupled with efficient delivery times of 7-10 work days and flexible T/T payment terms, makes the MF5A-3 Series an attractive option for businesses seeking reliable temperature measuring devices with excellent service support.
For inquiries or to place an order, customers are encouraged to contact Hefei Minsing directly. With comprehensive certifications, high-quality manufacturing standards, and a commitment to precision, the MF5A-3 Series Precision NTC Thermistor stands out as a superior choice for diverse temperature measurement applications worldwide.
Customization:
Hefei Minsing offers customized Precision NTC Thermistor Temperature Detector solutions with the MF5A-3 Series, designed for accurate and reliable temperature measurement. Our Thermistor Temperature Detector products originate from Hefei Anhui, China, and come with certifications including IATF16949, ISO9001, CE, and RoHS, ensuring high quality and compliance.
The MF5A-3 Series Thermistor Temperature Detector features a resistance range of 0.5KΩ to 2000KΩ and operates efficiently within a temperature range of –40°C to +150°C. With tolerance options of ±0.5%, 1%, 2%, 3%, and 5%, these analog type Thermistor Temperature Detectors meet diverse application requirements.
We support a minimum order quantity of 100pcs, with pricing negotiable to fit your budget. Each Thermistor Temperature Detector is carefully packaged in anti-static bags and boxes to ensure safe delivery. Typical delivery time is 7-10 work days, backed by a supply ability of 50 million pieces per year.
Payment terms are T/T, and for further inquiries or to customize your Thermistor Temperature Detector order, please Contact us. Trust Hefei Minsing for your precision Thermistor Temperature Detector needs.
