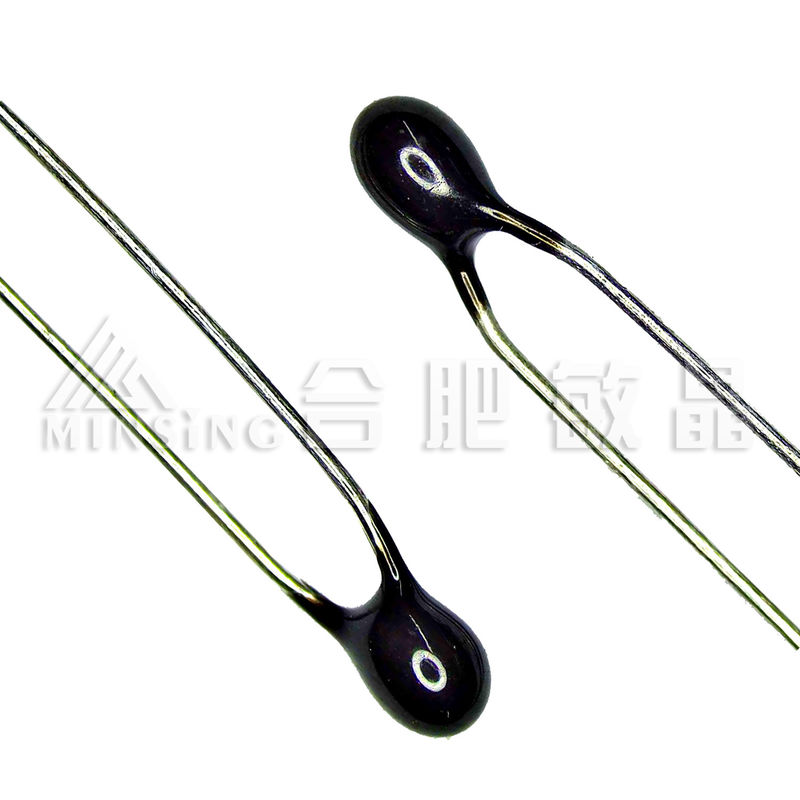

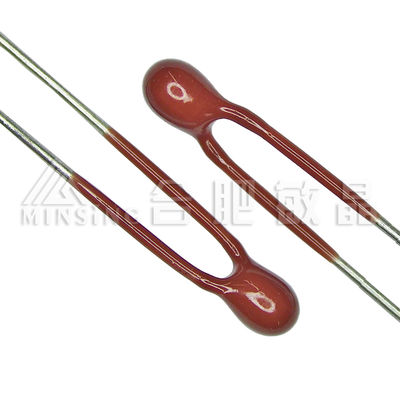

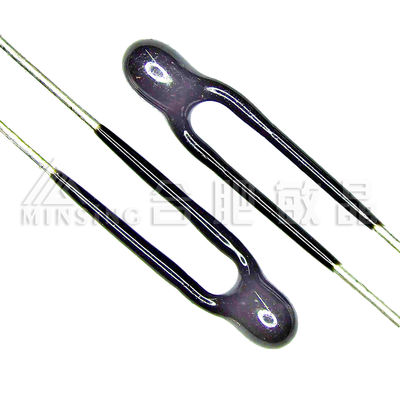

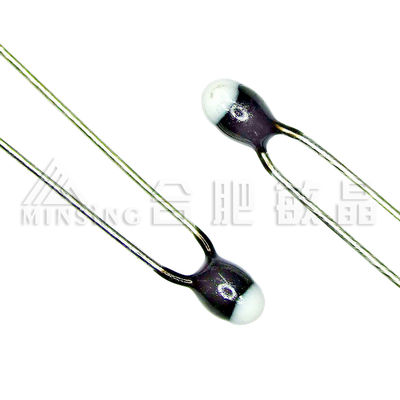

Industrial Ceramic NTC Thermistor High Precision -40°C~150°C Temperature Range for Industrial Temperature Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-3 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-static bag & box |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Thermal Time Constant: | ≤15S | Tolerance: | ±0.5%,1%,2%,3%,5% |
|---|---|---|---|
| Installation: | DIP Resistor | Size: | Φ1.0-Φ4.5mm |
| Temperature Range: | –40°C To +150°C | Contact: | Contact |
| Supplier Type: | Original Manufacturer, Retailer,other | Output Signal Type: | Analog Type |
| Highlight: | Ceramic NTC Thermistor,Industrial NTC Thermistor |
||
Product Description
Industrial Ceramic NTC Thermistor High Precision -40°C~150°C Temperature Range for Industrial Temperature Monitoring
Product Feature:
Epoxy coated / Miniature designed / Bare and bendable wire / Fast response
Application:
Temperature sensor / Electronic calendar and electronic thermometer / Temperature compensation
Specification Explain:
MJ MF 5A-3 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-3 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 10s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 |
4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.
FAQ:
1.Are you a factory or trading company?
We are a factory founded in 1994 and have over 30 years’ OEM and international trading experience.
2.What’s your main product?
Our main products are NTC Thermistor and Temperature sensor.
3.Any certification of your company or product?
We have certificates of ISO 9001:2015, IATF16949:2016, CE, UL, REACH, RoHS.
4.Which countries have your product been exported to ?
We have exported our product to over 30 countries , such as Germany,America,Poland, Filand,Canada, Spain, Italy, Sweden,France,Russia,Denmark,Netherland,Thailand,Turkey,Brazil, Mexico, Iran, U.A.E , Korea, Argentina etc.
5.Can I visit your factory?
We have over 7000 square meters of workspace and sincerely welcome your business visit.
6.Do you accept OEM or ODM?
Of course.
7.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.
