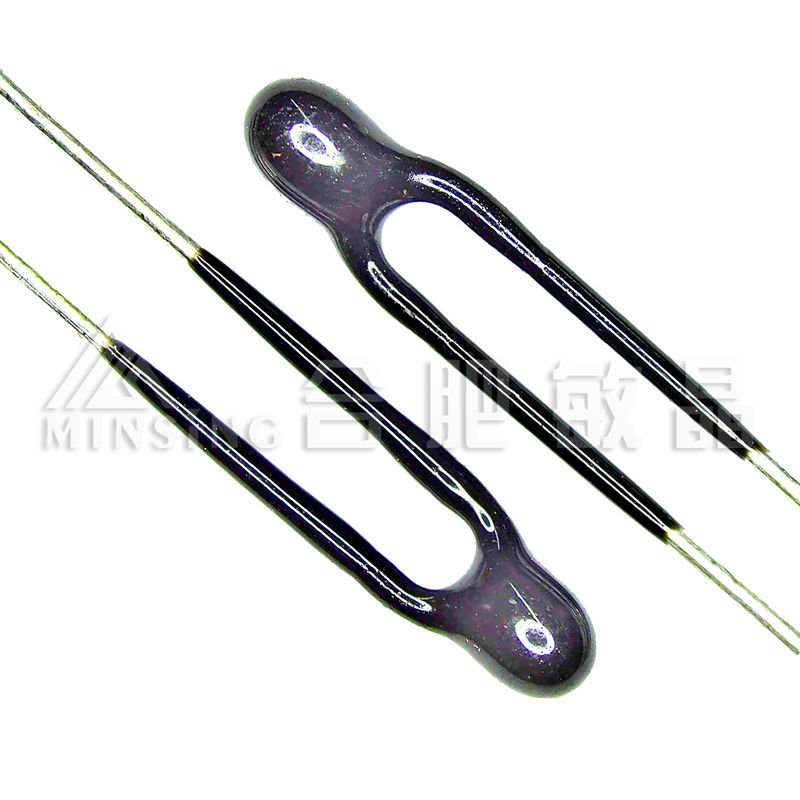

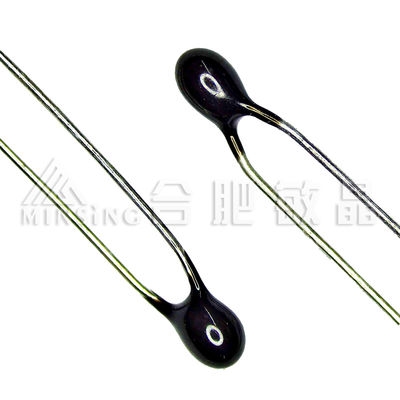

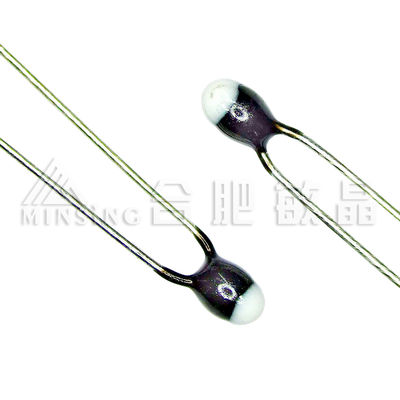

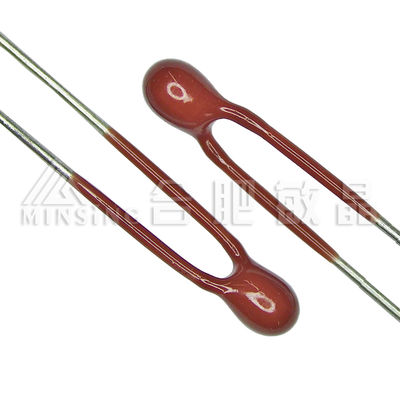

High Stability Ceramic-Based Precision NTC Thermistor for Industrial Contact Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-3 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-static bag & box |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Size: | Φ1.0-Φ4.5mm | Installation: | DIP Resistor |
|---|---|---|---|
| Supplier Type: | Original Manufacturer, Retailer,other | Resistance Range: | 0.5KΩ-2000KΩ |
| Temperature Range: | –40°C To +150°C | Material: | Ceramic |
| Measuring Medium: | Temperature | Contact: | Contact |
| Highlight: | Ceramic Material NTC Thermistor,Contact Applications Precision NTC Thermistor,Ceramic Material Precision NTC Thermistor |
||
Product Description
High Stability Ceramic-Based Precision NTC Thermistor for Industrial Contact Applications
Product Feature:
1. Long coating / Damp-proof / Scale production , high performance cost ratio
2. New technique adopted to ensure stable performance and long working hours
3. High precision of resistance and B value: negative or positive 1%
4. Good coherence and interchange ability
5. Quick response and high delicacy
Application:
1. Heating, Ventilation & Air Conditioning
2. Temperature Regulation and Measurement
3. Electronic Thermometers
4. Liquid Level Minsing
5. Automotive Electronics
6. Medical Equipment and Apparatus.
7. Battery Packs and Portable Electronics
Specification Explain:
MJ MF 5A-3 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-3 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 10s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 |
4530 |
