Analog Precision NTC Thermistor 0.5KΩ~2000KΩ ≤10S Thermal Time Constant
Product Details:
| Place of Origin: | China |
| Brand Name: | Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-3 Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-static bag & box |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| HS Code: | 8533400000 | Thermal Time Constant: | ≤10S |
|---|---|---|---|
| Temperature Range: | –40°C To +150°C | Tolerance: | ±0.5%,1%,2%,3%,5% |
| Resistance Range: | 0.5KΩ-2000KΩ | Output Signal Type: | Analog Type |
| Product Name: | Precision NTC Thermistor | Measuring Medium: | Temperature |
| Highlight: | 10S Precision NTC Thermistor,2000KΩ Precision NTC Thermistor,0.5KΩ Precision NTC Thermistor |
||
Product Description
Analog Precision NTC Thermistor 0.5KΩ~2000KΩ ≤10S Thermal Time Constant

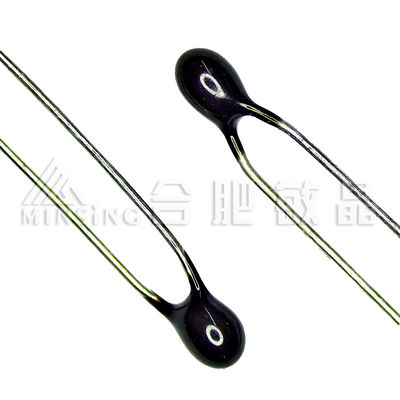

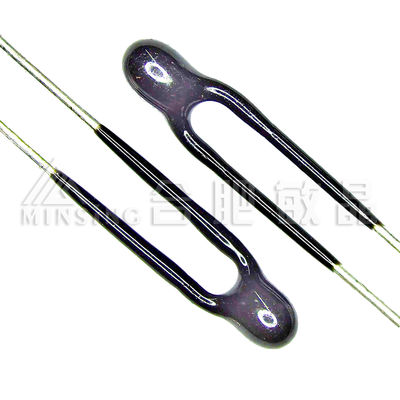

The device consists of a chip with two tinned solid copper-plated leads. It is black coated epoxy and colour coded, but not insulated.
Product Feature:
Epoxy coated / Miniature designed / Bare and bendable wire / Fast response
Application:
Temperature sensing, control and compensation.
E.g. inlet air temperature sensing thermistors or ECT in automotive applications, sensor elements in industrial and commercial applications, heating systems and industrial systems.
Mounting:
The thermistors are suitable for all standard assembly processes like crimping, soldering, welding, and potting into epoxy or silicon resins. The parameters and materials of the assembly process should be chosen in accordance with the lead-wire and coated body and validated in the application.
Specification Explain:
MJ MF 5A-3 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-3 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 10s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 |
4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.
FAQ:
How to order?
1. The application of the NTC thermistor or temperature sensor:__________
2. The range of operation temperature:___°c to ___°c
3.The dimension and the drawing of the Thermistor
4. The R value:_____K ohm ±________% at _____°c,
5. The B value: (_____°c/____°c) = ______K ± _____%
6. Quantity demanded: _________ pcs
