Precision Negative Temperature Coefficient Thermistors Miniature Polyimide Tube 1.5mm
Product Details:
Place of Origin: | China |
Brand Name: | Hefei Minsing |
Certification: | IATF16949/ISO9001/CE |
Model Number: | HSE423 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Anti-static bag & box |
Delivery Time: | 7-10 work days |
Payment Terms: | T/T |
Supply Ability: | 100 Thousand Pieces Per Month |
Detail Information |
|||
Package Type: | Polyimide Tube | Time Constant: | Less Than 0.4s In Liquids |
---|---|---|---|
Resistance Range: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
Supplier Type: | Original Manufacturer, Retailer,other | Size: | Φ1.0-Φ4.5mm |
Temperature Range: | –40°C To +125°C | Lead Wire: | /Enamelled |
Highlight: | 1.5mm Negative Temperature Coefficient Thermistors,Precision Negative Temperature Coefficient Thermistors,Miniature Polyimide Tube Precision NTC Thermistor |
Product Description

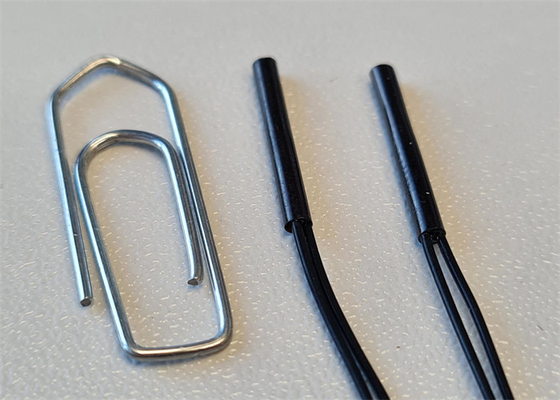

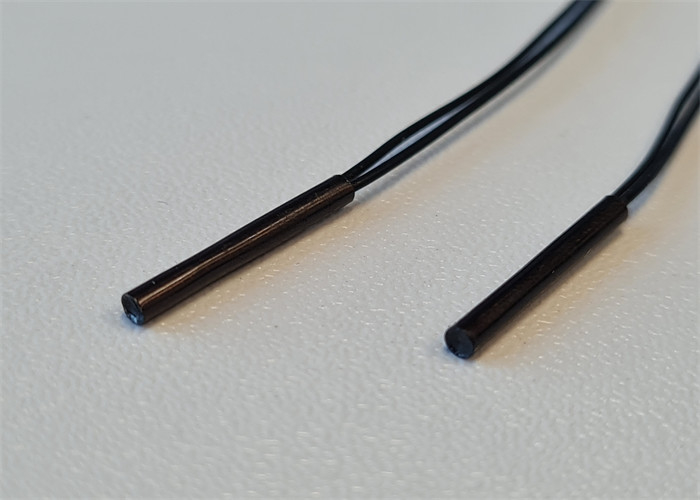

Miniature Polyimide Tube Φ1.5 Negative Temperature Coefficient Thermistors
The probes are suited for applications that require rapid temperature response and where space is limited. These miniature thermistors are potted in a polyimide tube with a thermally conductive epoxy.
FEATURES
- Can be supplied with a moisture coated housing
- Rapid Time Constant
- Standards supplied with ± 0.1°C tolerance(25°C to +45°C).
- Can be considered for medical applications
- Temperature range -40ºC to +125ºC
APPLICATIONS
- Reduced size allows localized and rapid temperature Minsing
- Small Biomedical probes and catheter assemblies
- Temperature monitoring in Communication systems
- Micro-flow Minsing
- Instrumentation and specialist probes
NTC Thermistor
The name thermistor, derived from thermally-sensitive-resistor, was coined to describe a form of resistive device that possesses a large temperaturecoefficient of resistance over an extended temperature range.
NTC thermistor has a negative temperature coefficent that resistance decreases with increasing temperature.
NTC thermistor are made from semicondecting materials that usually consists of a sintered ceramic fabricated in a variety of shapes and sizes from a miture of oxides chosen from the elements Mn, Ni, Co, Cu and Fe.By varying the composition and the size of the semiconducting elements, resistance values between 100 and 106ohms at room temperature can be achieved.
The fields of NTC thermistor applications are temperature Minsing either for the purpose of temperature measurement, temperature control, thermal alarms or for the compensation of changes in circuit resistance brought about by variations in the ambient temperature.
