Potted In A Polyimide Tube Precision NTC Thermistor With Thermally Conductive Epoxy
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | IATF16949/ISO9001/CE |
| Model Number: | MF5A-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Anti-static bag & box |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Resistance Value: | 2.7K±1% | B25/85: | 3977±1% |
|---|---|---|---|
| Package Size: | Φ1.0-Φ4.5mm | Package Type: | Polyimide Tube |
| Lead Wire: | Solid Silver Plated Copper Wire | Temperature: | –40°C To +125°C |
| Application: | Temperature Sensing | Supplier Type: | Original Manufacturer, Retailer,other |
| High Light: | Thermally Conductive Epoxy Precision NTC Thermistor,Polyimide Tube Potted Precision NTC Thermistor,Temperature Sensing Precision Thermistor |
||
Product Description

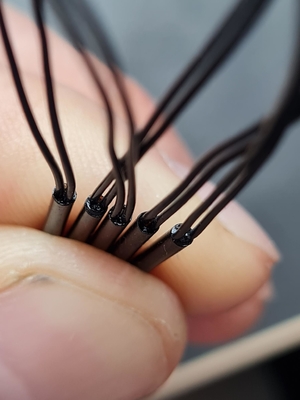

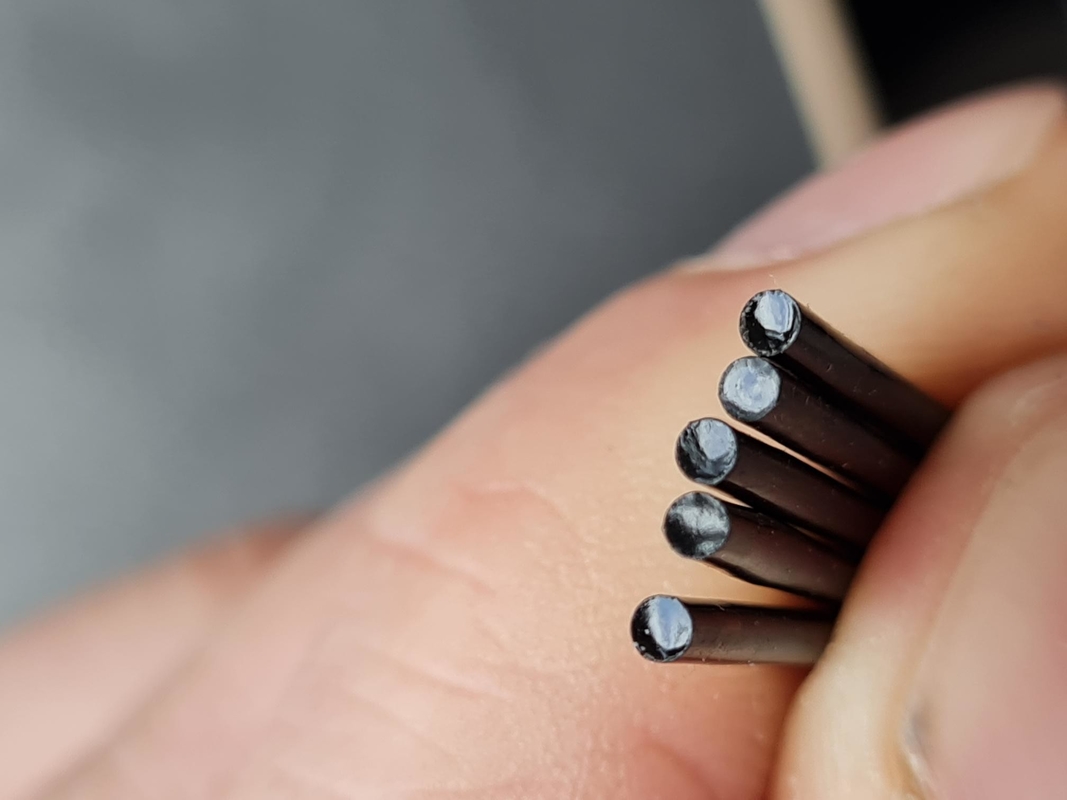

NTC Thermistor soldered to 28~32AWG Solid Solid Silver Plated Copper Wire with FEP/PFA Insulation. Unit is potted in a polyimide tube with thermally conductive black epoxy.
The name thermistor, derived from thermally-sensitive-resistor, was coined to describe a form of resistive device that possesses a large temperaturecoefficient of resistance over an extended temperature range.
NTC thermistor has a negative temperature coefficent that resistance decreases with increasing temperature.
NTC thermistor are made from semicondecting materials that usually consists of a sintered ceramic fabricated in a variety of shapes and sizes from a miture of oxides chosen from the elements Mn, Ni, Co, Cu and Fe.By varying the composition and the size of the semiconducting elements, resistance values between 100 and 106ohms at room temperature can be achieved.
The fields of NTC thermistor applications are temperature sensing either for the purpose of temperature measurement, temperature control, thermal alarms or for the compensation of changes in circuit resistance brought about by variations in the ambient temperature.
Applications:
- Low volume flow sensors (liquids or gases)
- Laboratory animal research
- Peltiere (thermal cooler) temperature tracking sensors.
- Temperature monitoring in Communication systems
- Instrumentation and specialist probes
- Small Medical probes
Competitive Advantage:
1. Factory supply directly
2. Completed certificates such as IATF16949/ISO9001/CE,etc and high quality available
3. Quick delivery
4. Improve after sales service system
Tell us your request:
1.The application of the NTC thermistor:__________
2.Working environment of NTC thermistor:________
3.Operation temperature range:___℃ to ___℃
4.Any requirement about sensor probe material or dimension:______________
5.The R value:___K ohm ±___% at ___℃,
6.The B value: B(____℃/____℃) = _____K ± ___%
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a leading Chinese manufacturer and exporter of NTC Thermistor and Temperature Sensor for 28 years.
Q: How long is your delivery time?
A: Generally it is 2 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
