Precision NTC Thin Film Thermistor High Delicacy Firm Structure

Precision NTC Thin Film Thermistor High Delicacy Firm Structure
Precision NTC Thin Film Thermistor High Delicacy Firm Structure Precision NTC Thin Film Thermistor High Delicacy Firm Structure Precision NTC Thin Film Thermistor High Delicacy Firm Structure Precision NTC Thin Film Thermistor High Delicacy Firm Structure

Large Image :  Precision NTC Thin Film Thermistor High Delicacy Firm Structure

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MF5A-6
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 10 Million Pieces Per Year
Detailed Product Description
Head Material: Heat-resist Insulating Film Lead Wire: Tinned Phosphor Copper Frame
Head Size: Φ3.75/Φ4.5/Φ5.5 Wire Length: 25-75mm
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5% B Tolerance: 1%, 2%,3%,5%
High Light:

Thin Film Precision NTC Thermistor

,

High Delicacy Firm NTC Thermistor

,

Precision NTC Thin Film Thermistor

Precision NTC Thin Film Thermistor Factory High Delicacy Firm Structure

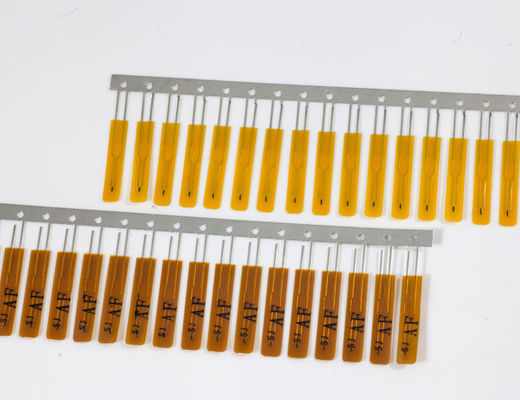

MF5A-6 series thin film thermistors are frequently used for applications where limited space is concern. With typical thickness of 0.6mm they are ideal choice for precise temperature measurement between flat surfaces where quick response time is critical.



Characteristics

  • To use heat-resist polyimide film, no bubbles, good packaging
  • Phosphor copper pins, good elasticity and fast heat conduction
  • Suitable for flat and narrow space temperature detection (computer motherboard)
  • Good resistance consistency and interchangeability
  • Other electrical parameters, size can be customized according to your requirement



Applications

  • Computer
  • Printer
  • Household appliance
  • CPU fan temperature detection
  • Battery temperature control
  • Charger, Power tube temperature protection
  • Temperature control of hand warmers and other small household appliances

Precision NTC Thin Film Thermistor High Delicacy Firm Structure 0



Specification Explain:



SJ      MF      5A-6      -3470      -502      F

①       ②          ③          ④           ⑤       ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-6 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Precision NTC Thin Film Thermistor High Delicacy Firm Structure 1 Precision NTC Thin Film Thermistor High Delicacy Firm Structure 2



Specification:

Specification R25 (KΩ) B25/50 (K)  Disspation       constant  Thermal time   constant   Operating temp. range
SJMF5A-□-347/395/385-202□ 2 3470/3950/3850









ln still air

≥ 2.1mW/℃









 ln still air

 ≤ 8s











-40~+150℃

SJMF5A-□-327/347/395-502□ 5 3270/3470/3950
SJMF5A-□-338/347/390-103□ 10 3380/3470/3900
SJMF5A-□-395/420/405-473□ 47 3950/4200/4050
SJMF5A-□-395/420/405-503□ 50 3950/4200/4050
SJMF5A-□-395/348-152□ 1.5 3950/3480
SJMF5A-□-397/418-104□ 100 3970/4180
SJMF5A-□-453-105□ 1000 4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25 among 0.5KΩ-2000KΩ MF5A can be custom designed.

Precision NTC Thin Film Thermistor High Delicacy Firm Structure 3Precision NTC Thin Film Thermistor High Delicacy Firm Structure 4Precision NTC Thin Film Thermistor High Delicacy Firm Structure 5Precision NTC Thin Film Thermistor High Delicacy Firm Structure 6

Hefei Sensing Electronic Co., Ltd is one of the most professional NTC Thermistor and Temperature Sensor manufacturers and programme suppliers in China for about 28 years. Our products are widely used for the household electric appliances and auto industry. Our team will serve for you from the beginning of your source to the very end of the shipment. We are exporter based on factory so that the cost can be saved directly for you .
