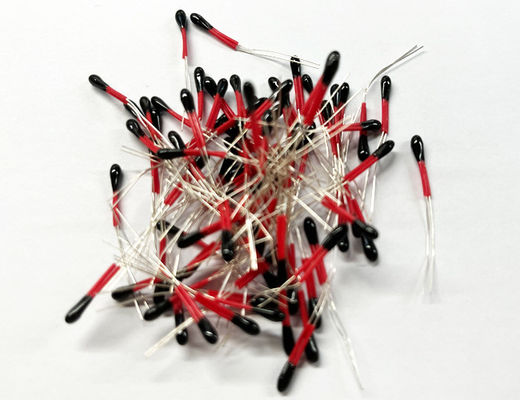

Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component

Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component
Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component

Large Image :  Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MF5A-5
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 50 Million Pieces Per Year
Detailed Product Description
Head Material: Epoxy Resin Lead Wire: 30AWG FEP/PFA
Head Size: Φ1.5-Φ4.5mm Wire Length: 15-2000mm
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
Response Time: 5-15sec Temp. Range: -40~150℃
High Light:

Precision Thermistor 10Kohm

,

Electronic Component Precision NTC Thermistor

,

3988K Bead Precision NTC Thermistor

Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component China



SPECIFICATIONS

  • Thermally conductive epoxy coating
  • Ø 2.4 mm Maximum Diameter
  • 30 AWG Solid Silver Plated Copper Leads with Red FEP/PFA Insulation
  • Choice of 5 temperature tolerance classifications
  • RoHS Compliant



The BetaCURVE Chip is Soldered to 30 AWG Solid Silver Plated Copper Leads with Red FEP/PFA Insulation Device is Encapsulated in Waterproof Epoxy Resin.



FEATURES

  • Interchangeability
  • Proven Stability and Reliability
  • Rapid time response
  • FEP/PFA Insulated lead Wires
  • Thermally Conductive Epoxy Coating
  • Temperature range -55 ºC to +125ºC



APPLICATIONS

  • Temperature sensing, control and compensation
  • Tight Tolerance Instrumentation
  • Assembly into probes for a wide variety of applications
  • General Instrumentation applications



PACKAGING

The thermistors are packed in cardboard boxes; the smallest packing quantity is 500 units.



MARKING

The coated body has no markings



MOUNTING

The thermistors are suitable for all standard assembly processes like crimping, brazing, and welding (laser, ultrasonic, or resistance). The parameters of the assembly process should be chosen in accordance with the lead-wire material (silver plated copper alloy) and validated in application.



Different conductor, insulation material, and dimensions are available on request.



The mounting process should be in compliance with the following guidelines and recommendations:

  • Peeling forces on the leads should be reduced to a minimum and should never exceed 3 N.
  • Avoid large temperature gradients between the welding region and the sensor.
  • After complete assembly it is recommended to fix the leads in the welding region with a strain relief.

If using a ceramic adhesive / potting or filling material avoid phosphate-based binders. Always follow the supplier’s curing specifications fully including bringing the part up to operating temperature for a short time to ensure good moisture resistance and electrical performance of the total sensor.

Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 0





Specification Explain:

SJ      MF       5A-5        -3470      -502      F

①       ②           ③            ④            ⑤      ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-5  series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)





 Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 1   Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 2



Specification:

Specification R25℃ (KΩ) B25/50℃ (K)  Disspation       constant  Thermal time   constant   Operating temp. range
SJMF5A-□-347/395/385-202□ 2 3470/3950/3850









ln still air

≥ 2.1mW/℃









 ln still air

 ≤ 15s











-40~+150℃

SJMF5A-□-327/347/395-502□ 5 3270/3470/3950
SJMF5A-□-338/347/390-103□ 10 3380/3470/3900
SJMF5A-□-395/420/405-473□ 47 3950/4200/4050
SJMF5A-□-395/420/405-503□ 50 3950/4200/4050
SJMF5A-□-395/348-152□ 1.5 3950/3480
SJMF5A-□-397/418-104□ 100 3970/4180
SJMF5A-□-453-105□ 1000 4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25 among 0.5KΩ-2000KΩ MF5A can be custom designed.

Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 3Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 4Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 5Precision Thermistor 10Kohm 3988K Bead Ntc Electronic Component 6





FAQ:



1.Are you a factory or trading company?
We are a factory founded in 1994 and have over 28 years’ OEM and international trading experience.



2.What’s your main product?
Our main products are NTC Thermistor and Temperature sensor.



3.Any certification of your company or product?
We have certificates of ISO 9001:2015, IATF16949:2016, CE, UL, REACH, RoHS.



4.Which countries have your product been exported to ?

We have exported our product to over 30 countries , such as Germany,America,Poland, Filand,Canada, Spain, Italy, Sweden,France,Russia,Denmark,Netherland,Thailand,Turkey,Brazil, Mexico, Iran, U.A.E , Korea, Argentina etc.



5.Can I visit your factory?

We have over 7000 square meters of workspace and sincerely welcome your business visit.



6.Do you accept OEM or ODM?
Of course.



7.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.
