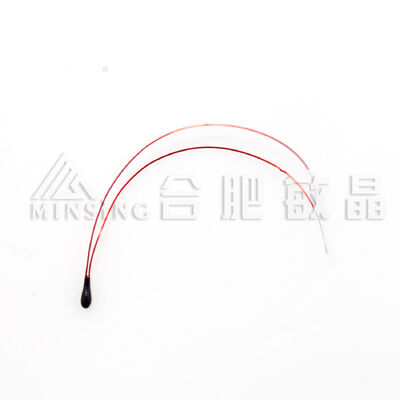

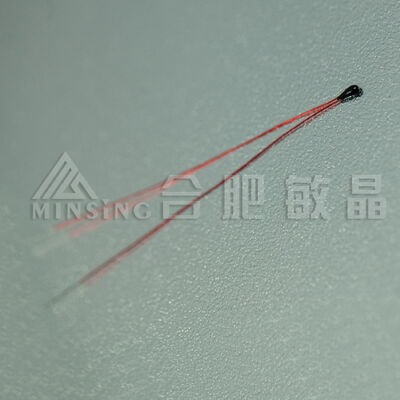

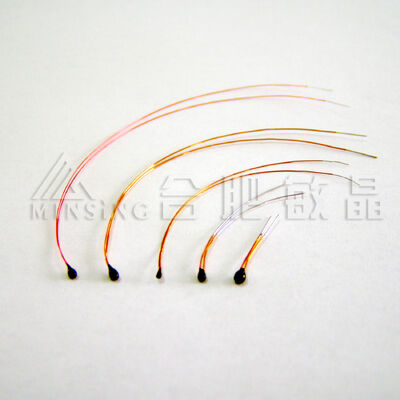

Precision Epoxy-Encapsulated NTC Thermistor with Enameled Lead Wires
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | IATF16949/ISO9001/CE/RoHS |
| Model Number: | MF5A-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Million Pieces Per Year |
|
Detail Information |
|||
| Coating: | Epoxy Resin | Lead Diameter: | Φ0.16,Φ0.25,Φ0.29 |
|---|---|---|---|

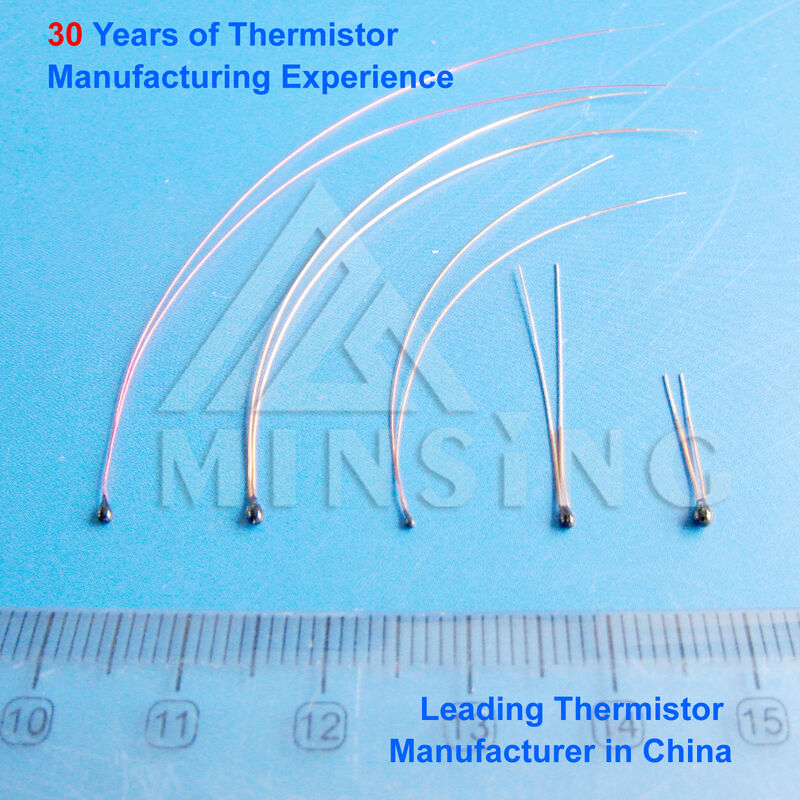

| Head Size: | Φ0.8-Φ2.5mm | Wire Length: | 10-1000mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| Theory: | Resistance Changes With Ambient Temperature | Usage: | Home Appliances, Process Control Etc. |
| Highlight: | Enameled Lead Wire NTC Thermistors,Enameled Lead Wire Thermistor Precision,Epoxy Coating Thermistor Precision |
||
Product Description
Precision Epoxy-Encapsulated NTC Thermistor with Enameled Lead Wires
NTC thermistors have a wide range of applications. The medical industry relies on NTC thermistors in various applications such as catheters, dialysis equipment, and patient monitoring. Many household appliances such as dryers and coffee makers use NTC thermistors to accurately measure temperature. In the field of building control and process, HVAC and refrigeration equipment uses NTC sensors to measure temperature to improve efficiency and control levels. The automotive and aerospace industries use NTC thermistors for test, measurement, and production applications.
Applications:
Temperature compensation in circuitry.
Digital thermometer / Microwave therapeutic equipment
Thermo control instruments and electronic washing equipment
Product Feature:
Medical application precise / Varnished wire / Miniature sensor bead
Specification Explain:
MJ MF 5A-4 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Minsing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-4 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| MJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 12s |
-40～+150℃ |
| MJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| MJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| MJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| MJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| MJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| MJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| MJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.
