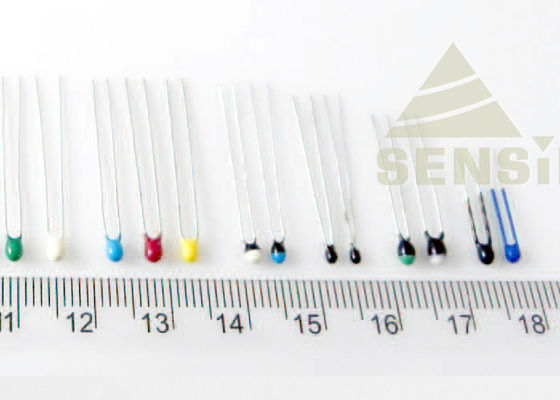

Epoxy Precision NTC Thermistor Leads Length Customizable
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | REACH ,ROHS |
| Model Number: | MF5A-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 2-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Epoxy | Lead Wire: | Cp/Sn （Φ0.3，Φ0.4，Φ0.5 Optional） |
|---|---|---|---|
| Head Size: | Φ1.5-Φ3.5mm | Wire Length: | 10-36mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 0.5%,1%,2%,3%,5% | B Tolerance: | 0.5%,1%, 2%,3%,5% |
| High Light: | Epoxy Head Material NTC Thermistor,Customizable Precision NTC Thermistor,Fast Response Precision NTC Thermistor |
||
Product Description
Epoxy Precision NTC Thermistor Manufacturer Leads Length Customizable for Temperature Measurement
Characteristics:
1. Small body diameter of max. 3.0 mm
2. Precise measurement in extreme environments.
3. Fast response time.
4. Ease of application and use
5. Engineered to withstand extreme temperatures -40 to + 150°C.
6. Greater engineering efficiency due to linear output.
Application:
Medical equipment and apparatus / Electronic thermometers / Instrumentation
Specification Explain:
SJ MF 5A-3 -3470 -502 F
① ② ③ ④ ⑤ ⑥
① Sensing Co.,Ltd
② NTC thermistor
③ Epoxy coating type 5A-3 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 12s |
-40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| SJMF5A-□-453-105□ | 1000 | 4530 |
Tell us your request:
1. The application of the NTC thermistor:__________
2. Working environment of NTC thermistor:________
3. Operation temperature range:___℃ to ___℃
4. Any requirement about sensor probe material or dimension:______________
5. The R value:___K ohm ±___% at ___℃,
6. The B value: B(____℃/____℃) = _____K ± ___%
