0.5 Tin Plated 42 Alloy Lead Wire Thermistor Precision 103AT-2 Series
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Certification: | REACH ,ROHS |
| Model Number: | MF5A-3T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 2-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Epoxy | Lead Wire: | 0.5 Tin Plated 42 Alloy |
|---|---|---|---|
| Head Size: | Φ2.4×Φ3.7mm | Wire Length: | 17mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 0.5%,1%,2%,3%, 5% | B Tolerance: | 0.5%,1%, 2%,3%, 5% |
| Highlight: | Tin Plated Precision NTC Thermistor,Epoxy High Precision Thermistor,Tin Plated Thermistor Precision |
||
Product Description

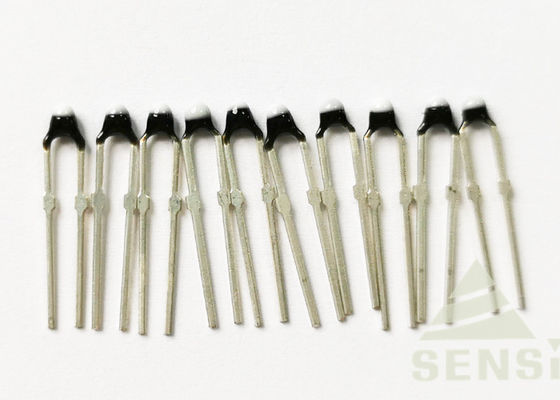

0.5 Tin Plated 42 Alloy Lead Wire 103AT-2 Series Precision NTC Thermistor
103AT-2 Series Precision NTC Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .
How to order?
1. The application of the NTC thermistor or temperature sensor:__________
2. The range of operation temperature:___°c to ___°c
3.The dimension and the drawing of the Thermistor
4. The R value:_____K ohm ±________% at _____°c,
5. The B value: (_____°c/____°c) = ______K ± _____%
6. Quantity demanded: _________ pcs
