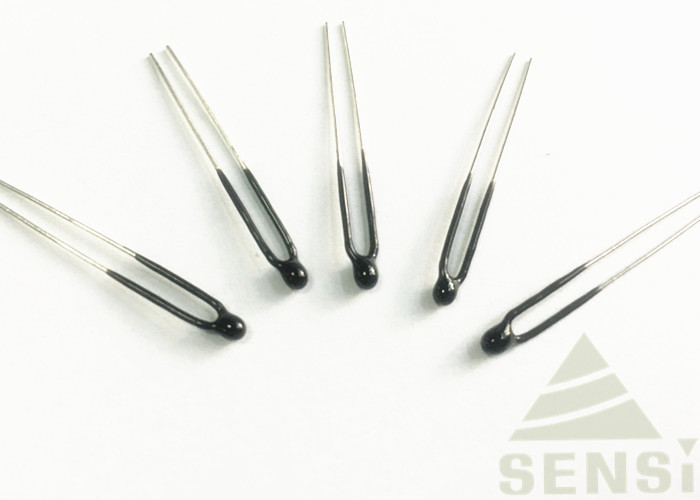

Long Coating Thermistor Precision With Additional Epoxy On The Leads

Long Coating Thermistor Precision With Additional Epoxy On The Leads
Long Coating Thermistor Precision With Additional Epoxy On The Leads
video play

Large Image :  Long Coating Thermistor Precision With Additional Epoxy On The Leads

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MF5A-3
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 2-10 work days
Payment Terms: T/T
Supply Ability: 50 Million Pieces Per Year
Detailed Product Description
Head Material: Epoxy Lead Wire: Φ0.5Cp/Sn
Head Size: MaxΦ3×15mm Wire Length: 30mm
R25℃: 1000Kohm B25/85: 4600K
R Tolerance: 1%,2%,3%, 5% B Tolerance: 1%,2%,3%, 5%
High Light:

Long Coating Thermistor Precision

,

Damp Proof Precision NTC Thermistor

,

Epoxy Head Thermistor Precision

Precision NTC Thermistor Suppliers With Additional Epoxy On The Leads Low Cost



Product Feature:

1. Long coating / Damp-proof / Scale production , high performance cost ratio

2. New technique adopted to ensure stable performance and long working hours

3. High precision of resistance and B value: negative or positive 1%

4. Good coherence and interchange ability

5. Quick response and high delicacy

Long Coating Thermistor Precision With Additional Epoxy On The Leads 0



Application:

1. Heating, Ventilation & Air Conditioning

2. Temperature Regulation and Measurement

3. Electronic Thermometers

4. Liquid Level Sensing

5. Automotive Electronics

6. Medical Equipment and Apparatus.

7. Battery Packs and Portable Electronics



Long Coating Thermistor Precision With Additional Epoxy On The Leads 1

Specification Explain:

SJ MF 5A-3 -3470 -502 F

① ② ③ ④ ⑤ ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-3 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification R25℃ (KΩ) B25/50 (K) Disspation constant Thermal time constant Operating temp. range
SJMF5A-□-347/395/385-202□ 2 3470/3950/3850









ln still air

≥ 2.1mW/℃









ln still air

≤ 12s











-40~+150℃

SJMF5A-□-327/347/395-502□ 5 3270/3470/3950
SJMF5A-□-338/347/390-103□ 10 3380/3470/3900
SJMF5A-□-395/420/405-473□ 47 3950/4200/4050
SJMF5A-□-395/420/405-503□ 50 3950/4200/4050
SJMF5A-□-395/348-152□ 1.5 3950/3480
SJMF5A-□-397/418-104□ 100 3970/4180
SJMF5A-□-453-105□ 1000 4530


Long Coating Thermistor Precision With Additional Epoxy On The Leads 2Long Coating Thermistor Precision With Additional Epoxy On The Leads 3Long Coating Thermistor Precision With Additional Epoxy On The Leads 4Long Coating Thermistor Precision With Additional Epoxy On The Leads 5
