Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head

Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head

Product Details:

Place of Origin: China
Brand Name: Hefei Sensing
Certification: IATF16949, UL, REACH ,ROHS
Model Number: MFP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Get Best Price Contact Now

Detail Information
Product Name: Mini Lug Ntc Sensor Supplier Type: Original Manufacturer, Retailer
Head Size: Φ3.2×12.3mm (Customizable) Head Material: Cu/ Sn Tube(Customizable)
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
Response Time: 5-15 Sec Max. Powe: 60 MW
High Light:

NTC Surface Mount Temperature Sensor

,

2800K Surface Mount Temperature Sensor

,

2800K surface mount temp sensor

Product Description

Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head



Miniature insulated chip thermistor with a negative temperature coefficient soldered to AWG#30 silver plated copper and insulated cables, and mounted inside a mini lug tin plated copper barrel.



FEATURES:

  • Fast time response for surface applications compared to industry standard NTC lug sensors
  • Reduced thermal gradient, due to the use of small dimensions and copper conductor, allowing for an accurate surface temperature measurement
  • The sensor is not suitable for being permanently in contact with water or liquids
  • Small size connector and small lug ring tongue terminal, allowing for temperature sensing at locations where only limited space is available
  • AEC-Q200 qualified available

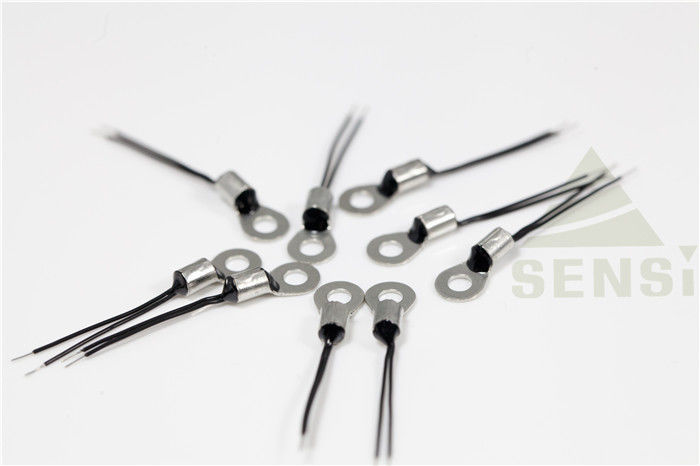

Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head 0Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head 1

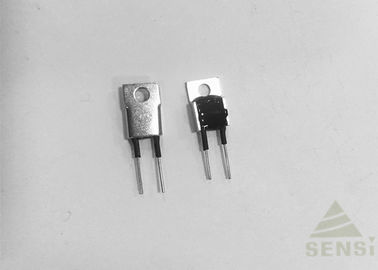

Mini Lug NTC Surface Mount Temperature Sensor 3.2×12.3mm Head 2



Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant  Thermal time constant

Operating

temp. range
SJMF□-□280-301□ 0.3 2800













ln still air 2.1~15mW/℃













ln still air 25~65s















-40～150℃
SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
