Surface Mount Ring Lug Terminal NTC Temperature Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | IATF16949 ,UL. REACH ,ROHS |
| Model Number: | MFP-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 6 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Cu/ Sn Tube(Customizable) | Lead Wire: | PVC , XLPE, Teflon... |
|---|---|---|---|
| Head Size: | RNB8-5S (Customizable) | Wire Length: | Customized To Your Demands |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%, 2%,3%,5% |
| High Light: | Ring Lug NTC Temperature Sensor,Sn Tube NTC Temperature Sensor,Gas Boiler NTC Temperature Sensor |
||
Product Description

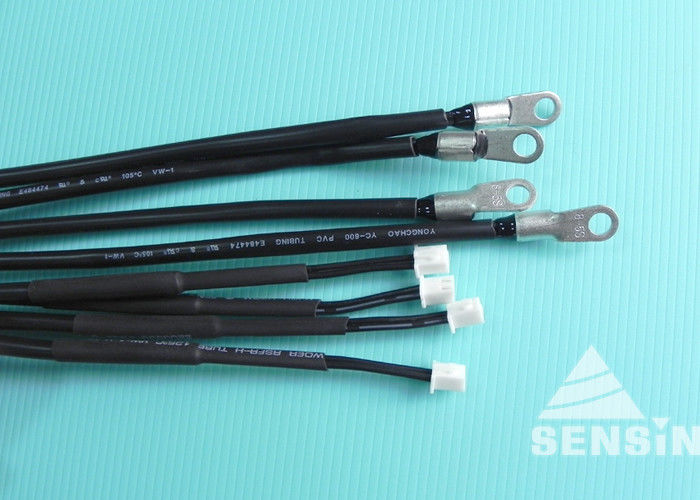

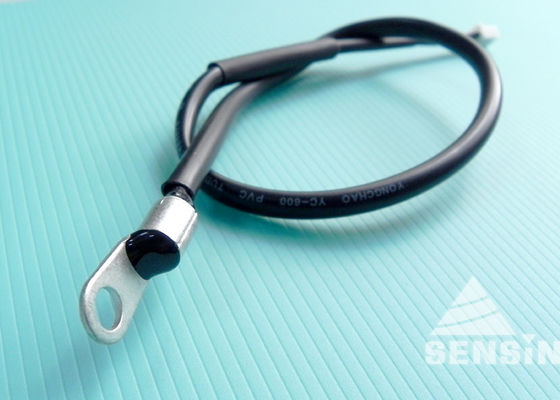

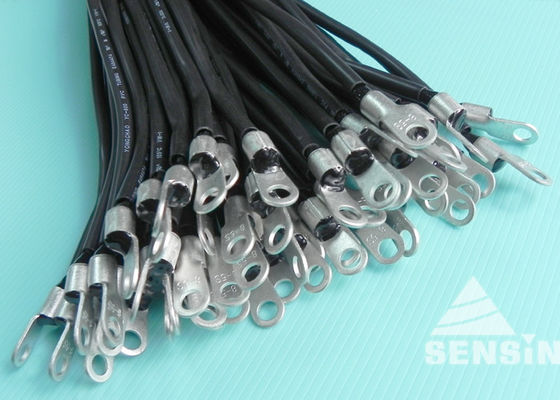

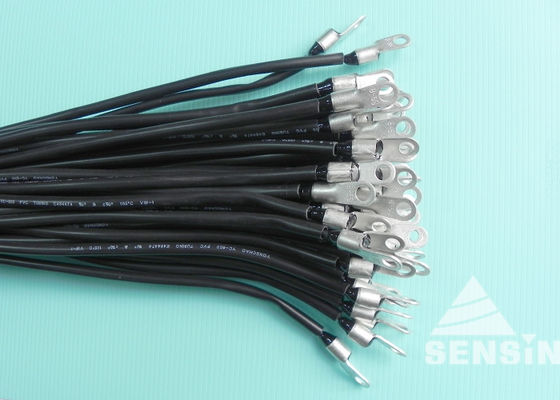

RNB8-5S Surface Mountable Ring Lug Terminal NTC Temperature Sensor for Battery Measurement
MFP-2 surface contact temperature sensor is connecting high precision, high reliable NTC thermistor with wires , encapsulated with insulation, thermal conductivity, waterproof material into the required shape, It's easy to install and remote measurement and control temperature.
Benefits:
• Ring lug terminals enable easy and secure surface mounting
• Completely customizable; offer a variety of housings and lead wire gauges
• Fast response times
• Provide a high-stability replacement for PT100 thermocouples; experience minimal drift from their initial electrical values
• Thermal time constant can be 10 seconds
• Electrical insulation voltage rating of 1500 VAC (1 second)
• AEC-Q200 qualification
• Customization available upon request
Specification Explain:
SJ MF P -2 -3950 -502 F
① ② ③ ④ ⑤ ⑥ ⑦
① Sensing Co.,Ltd
② NTC thermistor
③ Encapsulation probe
P: Anomalous probe encapsulated
④ Anomalous probe types:
1 .Copper crimp type, 2. Surface testing type, 3. Bullet type,
4 .Flange type, 5. Cap shell type, 6 .Screw thread type, 7. Clamp type
⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950
⑥ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ
⑦ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
