Water Heater Surface Mount Black Nylon Ring Lug Probe
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | IATF16949, UL, REACH ,ROHS |
| Model Number: | MFP-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 6 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Nylon Tube(Customizable) | Lead Wire: | PVC , XLPE, Silicone,Teflon... |
|---|---|---|---|
| Head Size: | Φ4×26mm (Customizable) | Wire Length: | Customized To Your Demands |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%, 2%,3%,5% |
| High Light: | Black Nylon Ring Lug Probe,Water Heater Ring Lug Probe,Surface Mount Ring Lug Probe |
||
Product Description

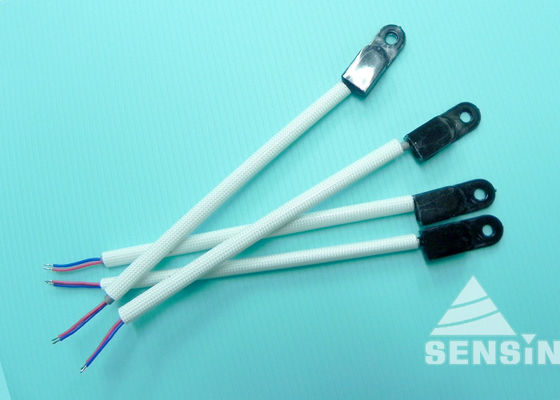

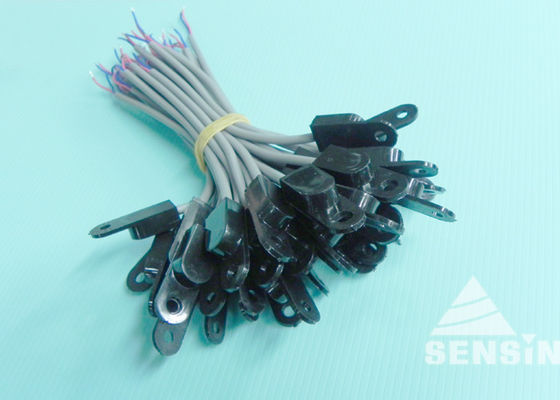

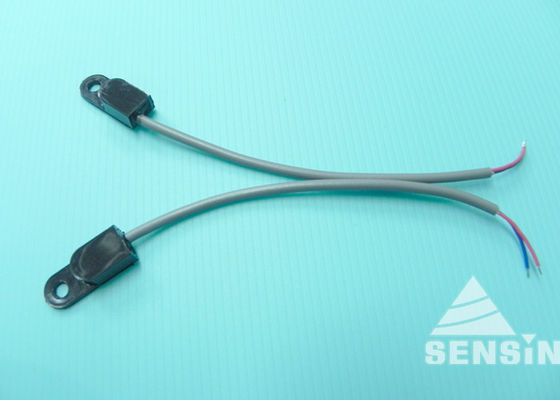

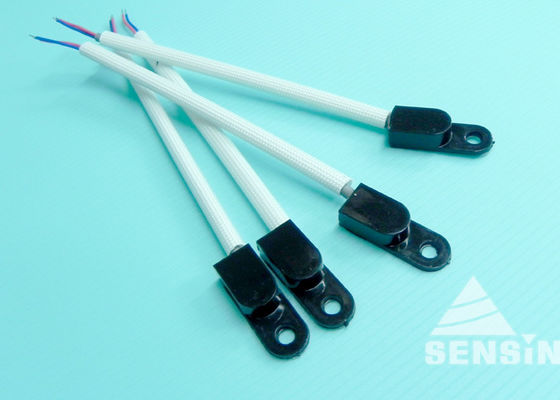

Black Nylon Ring Lug Probe, Customized for Solar Water Heater Temperature Measurement, Easy Surface Mounting
Product Feature:
Surface mountable and various mounting options
Application:
Electric motors
HVAC systems
Volume OEM production
Battery pack thermal management
Heatsink thermal management
Power supply and conversion
Automotive systems
Industrial systems
Test and measurement systems
Domestic appliances
Technical Data:
| Items | Product Parameters |
| Sensing component | NTC Thermistor various R and B value on request |
| Probe/ Shell materials | Nylon /ABS Ring lug |
| Wire materials | Gauge AWG28~AWG20 PVC, XLPE, Silicone, Teflon,etc. |
| Operating temp. range | -40°C to +120°C various |
| Thermal time constant | 25~65s ln still air |
| Disspation factor | 2.1~15mW/℃ ln still air |
| Long-term stability | Drift ≤ 3% after 1000h heat and cold store (120°C / -40°C) |
| Voltage withstanding | 1800VAC |
| Insulation resistance | ≥100MΩ 500VDC |
