Nylon Tube NTC Surface Mount Temperature Sensor

Nylon Tube NTC Surface Mount Temperature Sensor

Product Details:

Place of Origin: China
Brand Name: Hefei Minsing
Certification: IATF16949, UL, REACH ,ROHS
Model Number: MFP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Head Material: Nylon Tube(Customizable) Lead Wire: PVC , XLPE, ...
Head Size: Φ4×26mm (Customizable) Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%
Highlight:

NTC Surface Mount Temperature Sensor

,

Nylon Tube NTC Temperature Sensor

,

XLPE Lead NTC Temperature Sensor

Product Description

NTC Thermistor Surface Temperature Probe , Nylon Lug Housing , for Screw-in-place Applications



Technical Data:

Items                      Product Parameters
Minsing component      NTC Thermistor various R and B value on request
Probe/ Shell materials                       Nylon /ABS Ring lug
Wire materials  Gauge AWG28~AWG20 PVC, XLPE, Silicone, ,etc.
Operating temp. range                  -40°C to +120°C various
Thermal time constant                          25~65s ln still air
Disspation factor                2.1~15mW/℃ ln still air
Long-term stability  Drift ≤ 3% after 1000h heat and cold store (120°C / -40°C)
Voltage withstanding                              1800VAC
Insulation resistance                        ≥100MΩ 500VDC




Product Feature:

Surface mountable and various mounting options



Application:

Power Supply / Electrical motor / Radiator

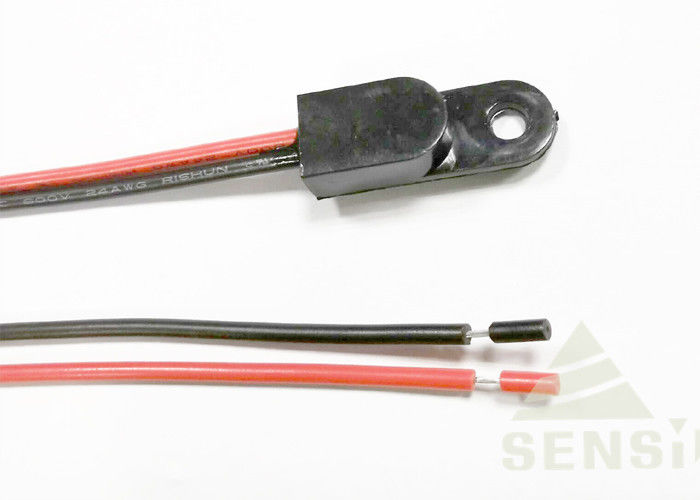

Nylon Tube NTC Surface Mount Temperature Sensor 0



How to order?
1, The application of the NTC thermistor or temperature sensor:__________

2, The range of operation temperature:___°c to ___°c

3, The dimension and the drawing of the Thermistor

4, The R value:_____K ohm ±________% at _____°c,

5, The B value: (_____°c/____°c) = ______K ± _____%

6. Quantity demanded: _________ pcs

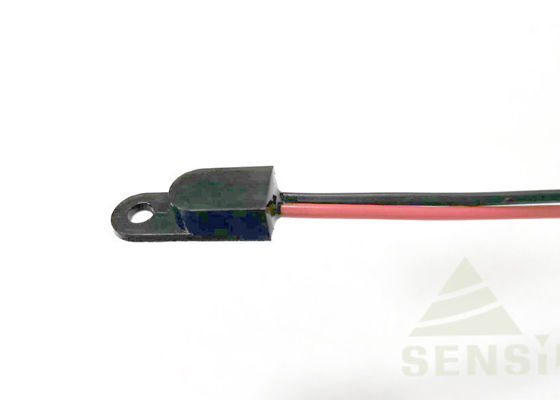

Nylon Tube NTC Surface Mount Temperature Sensor 1

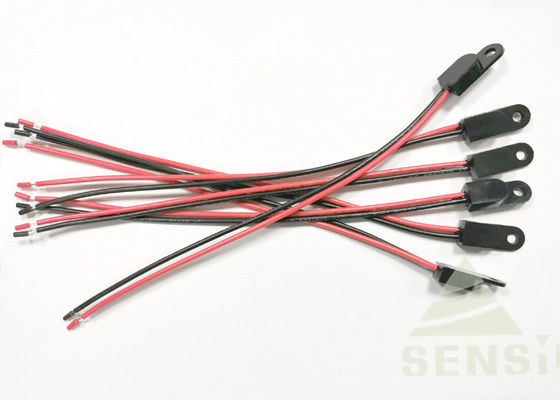

Nylon Tube NTC Surface Mount Temperature Sensor 2


FAQ:

Q: Are you trading company or manufacturer ?
A: We are a leading Chinese manufacturer and exporter of NTC Thermistor and Temperature Sensor for 27 years.


Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.


Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?
A: 100% in advance, T/T.
