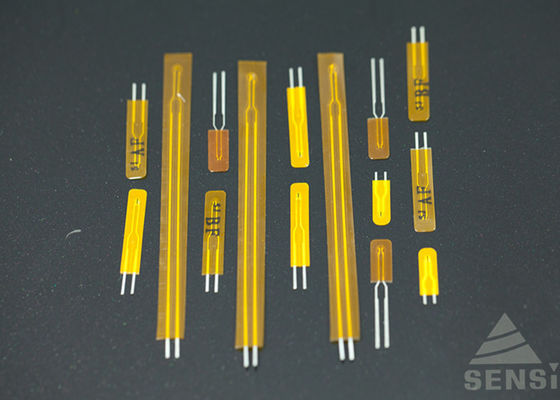

Long NTC Thin Film Thermistor For Temperature Measurement High Precision
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | REACH ,ROHS |
| Model Number: | MF5A-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Heat-resist Insulating Film | Lead Wire: | Tinned Phosphor Copper Frame |
|---|---|---|---|
| Head Size: | Φ3.75/Φ4.5/Φ5.5 | Wire Length: | 25-75mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 1%,2%,3%,5%,10% | B Tolerance: | 1%, 2%,3%,5% |
| High Light: | ntc electronic component,negative temperature coefficient ntc thermistor,High Precision Thin Film Thermistor |
||
Product Description
Long Thin Film Thermistor , 10Kohm 3977 , 75mm , for Temperature Measurement , Steady Product Performance
Product Introduction
With strong R&D capabilities,advanced production equipment and perfect measurement devices,
we supply qualified products and service in accordance with ISO9001 quality management system.
All products have passed hazardous substance test,met standards of EU and USA.
And we are confident we can meet your OEM/ODM requirements.
Product Feature:
Insulating film seal / Fast response / Good stability
Application:
Computer / Printer / Household appliances
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 8s |
-40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| SJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
Specification Explain:
SJ MF 5A-6 -3470 -502 F
① ② ③ ④ ⑤ ⑥
①Sensing Co.,Ltd
②NTC thermistor
③Epoxy coating type 5A-6 series
④B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
