PT100 / PT1000 RTD Temperature Sensor Probes with Stainless Steel Tubes
Product Details:
Place of Origin: | China |
Brand Name: | Hefei Minsing |
Certification: | REACH ,ROHS |
Model Number: | MFT-1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Bulk |
Delivery Time: | 7-10 work days |
Payment Terms: | T/T |
Supply Ability: | 6 Million Pieces Per Year |
Detail Information |
|||

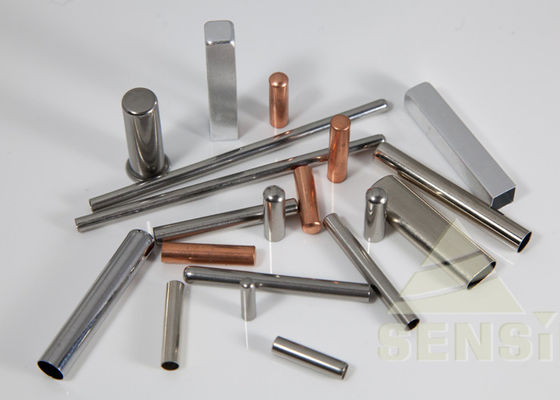

Head Material: | SUS, Cu, Cu/ NI, Al...Tube | Lead Wire: | PVC , XLPE, ,Silicon, Fiberglass... |
---|---|---|---|
Head Size: | Customized To Your Demands | Wire Length: | Customized To Your Demands |
Element Type: | PT100 Or PT1000 | Class: | A Or B |
Nominal Resistance: | 100Ωat 0℃ | Temp. Range: | -55℃ To +300℃ |
Highlight: | hvac temperature sensor,stainless steel temperature probe,Stainless Steel Tubes Temperature Sensor |
Product Description

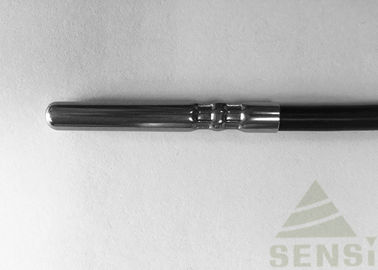

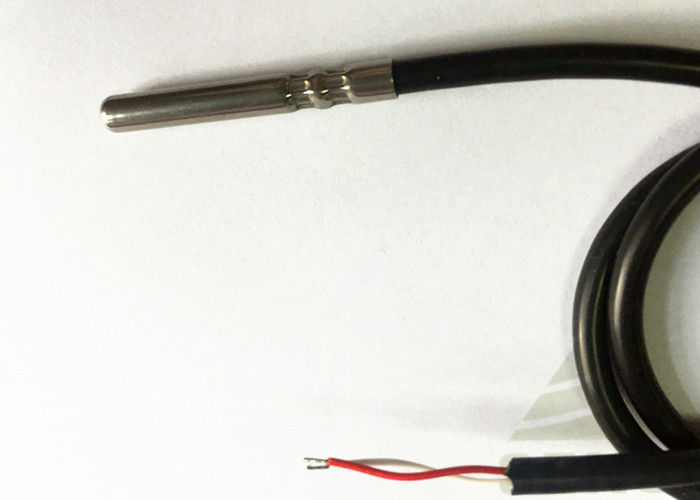

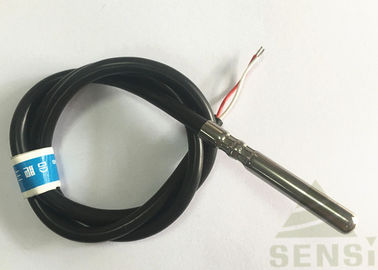

PT100 / PT1000 RTD Temperature Sensor Probes , with Stainless Steel Tubes , Durable for High Temp .
Product Feature:
Wide operating temperature range/ High stability and reliability
Nice looking / Extensive application/ Good protection
Application:
Air-Conditioner / Oven / Refrigerator / Freezer
PT100 R-T TABLE | |||||||
Temp [°C] | Resistance in Ohm | Temp [°C] | Resistance in Ohm | Temp [°C] | Resistance in Ohm | Temp [°C] | Resistance in Ohm |
-200 | 18.520 | 70 | 127.075 | 340 | 226.206 | 610 | 316.918 |
-195 | 20.677 | 75 | 128.987 | 345 | 227.963 | 615 | 318.518 |
-190 | 22.825 | 80 | 130.897 | 350 | 229.716 | 620 | 320.116 |
-185 | 24.965 | 85 | 132.803 | 355 | 231.467 | 625 | 321.710 |
-180 | 27.096 | 90 | 134.707 | 360 | 233.214 | 630 | 323.302 |
-175 | 29.220 | 95 | 136.608 | 365 | 234.959 | 635 | 324.891 |
-170 | 31.335 | 100 | 138.506 | 370 | 236.701 | 640 | 326.477 |
-165 | 33.443 | 105 | 140.400 | 375 | 238.440 | 645 | 328.060 |
-160 | 35.543 | 110 | 142.293 | 380 | 240.176 | 650 | 329.640 |
-155 | 37.637 | 115 | 144.182 | 385 | 241.910 | 655 | 331.217 |
-150 | 39.723 | 120 | 146.068 | 390 | 243.640 | 660 | 332.792 |
-145 | 41.803 | 125 | 147.951 | 395 | 245.367 | 665 | 334.363 |
-140 | 43.876 | 130 | 149.832 | 400 | 247.092 | 670 | 335.932 |
-135 | 45.944 | 135 | 151.710 | 405 | 248.814 | 675 | 337.498 |
-130 | 48.005 | 140 | 153.584 | 410 | 250.533 | 680 | 339.061 |
-125 | 50.060 | 145 | 155.456 | 415 | 252.248 | 685 | 340.621 |
-120 | 52.110 | 150 | 157.325 | 420 | 253.962 | 690 | 342.178 |
-115 | 54.154 | 155 | 159.191 | 425 | 255.672 | 695 | 343.732 |
-110 | 56.193 | 160 | 161.054 | 430 | 257.379 | 700 | 345.284 |
-105 | 58.227 | 165 | 162.915 | 435 | 259.083 | 705 | 346.832 |
-100 | 60.256 | 170 | 164.772 | 440 | 260.785 | 710 | 348.378 |
-95 | 62.280 | 175 | 166.627 | 445 | 262.483 | 715 | 349.920 |
-90 | 64.300 | 180 | 168.478 | 450 | 264.179 | 720 | 351.460 |
-85 | 66.315 | 185 | 170.327 | 455 | 265.872 | 725 | 352.997 |
-80 | 68.325 | 190 | 172.173 | 460 | 267.562 | 730 | 354.531 |
-75 | 70.332 | 195 | 174.016 | 465 | 269.249 | 735 | 356.062 |
-70 | 72.335 | 200 | 175.856 | 470 | 270.933 | 740 | 357.590 |
-65 | 74.333 | 205 | 177.693 | 475 | 272.614 | 745 | 359.116 |
-60 | 76.328 | 210 | 179.528 | 480 | 274.293 | 750 | 360.638 |
-55 | 78.319 | 215 | 181.359 | 485 | 275.968 | 755 | 362.158 |
-50 | 80.306 | 220 | 183.188 | 490 | 277.641 | 760 | 363.674 |
-45 | 82.290 | 225 | 185.013 | 495 | 279.311 | 765 | 365.188 |
-40 | 84.271 | 230 | 186.836 | 500 | 280.978 | 770 | 366.699 |
-35 | 86.248 | 235 | 188.656 | 505 | 282.641 | 775 | 368.207 |
-30 | 88.222 | 240 | 190.473 | 510 | 284.303 | 780 | 369.712 |
-25 | 90.192 | 245 | 192.287 | 515 | 285.961 | 785 | 371.215 |
-20 | 92.160 | 250 | 194.098 | 520 | 287.616 | 790 | 372.714 |
-15 | 94.124 | 255 | 195.906 | 525 | 289.268 | 795 | 374.210 |
-10 | 96.086 | 260 | 197.712 | 530 | 290.918 | 800 | 375.704 |
-5 | 98.044 | 265 | 199.514 | 535 | 292.565 | 805 | 377.195 |
0 | 100.000 | 270 | 201.314 | 540 | 294.208 | 810 | 378.683 |
5 | 101.953 | 275 | 203.111 | 545 | 295.849 | 815 | 380.167 |
10 | 103.903 | 280 | 204.905 | 550 | 297.487 | 820 | 381.650 |
15 | 105.849 | 285 | 206.696 | 555 | 299.122 | 825 | 383.129 |
20 | 107.794 | 290 | 208.484 | 560 | 300.754 | 830 | 384.605 |
25 | 109.735 | 295 | 210.269 | 565 | 302.384 | 835 | 386.078 |
30 | 111.673 | 300 | 212.052 | 570 | 304.010 | 840 | 387.549 |
35 | 113.608 | 305 | 213.831 | 575 | 305.634 | 845 | 389.016 |
40 | 115.541 | 310 | 215.608 | 580 | 307.254 | 850 | 390.481 |
45 | 117.470 | 315 | 217.381 | 585 | 308.872 | ||
50 | 119.397 | 320 | 219.152 | 590 | 310.487 | ||
55 | 121.321 | 325 | 220.920 | 595 | 312.099 | ||
60 | 123.242 | 330 | 222.685 | 600 | 313.708 | ||
65 | 125.160 | 335 | 224.447 | 605 | 315.314 |
