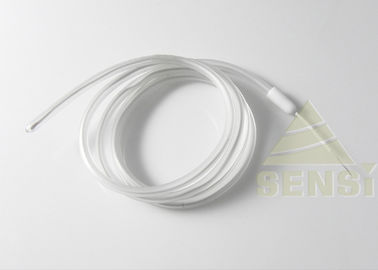

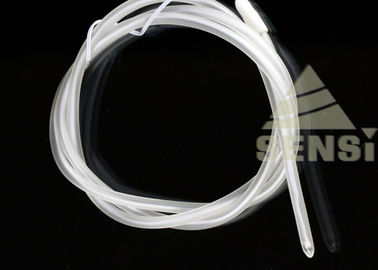

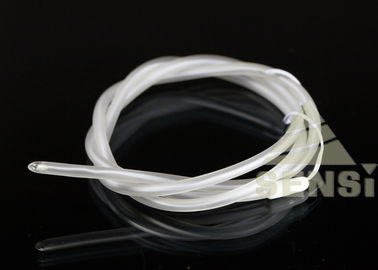

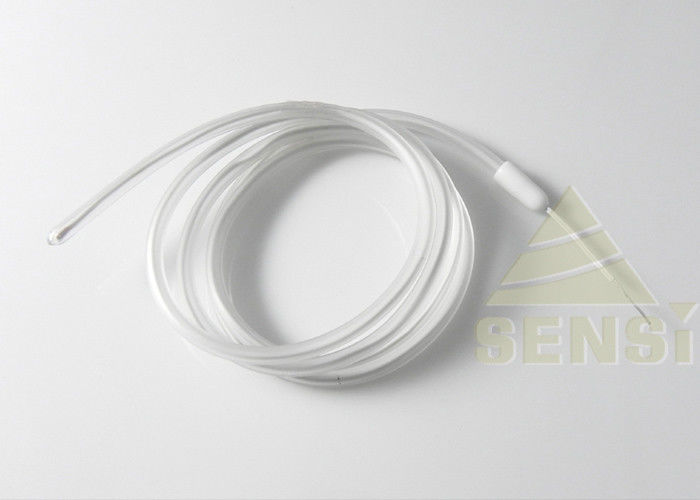

Medical Temperature Sensor for Nasopharynx / Esophagus / Tympanic Membrane
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | CE,REACH ,ROHS |
| Model Number: | HSE433 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 2-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | PVC Tube | Lead Wire: | PVC Wire |
|---|---|---|---|
| Head Size: | Φ3.4mm | Wire Length: | 800mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 25°C~45°C±0.1°C | B Tolerance: | 0.5% |
| High Light: | medical temperature probe,human body temperature sensor,PVC Tube Medical Temperature Sensor |
||
Product Description
Body Cavity Temperature Sensor , Monitoring Temp. of Nasopharynx , Esophagus , Tympanic Membrane
1. Accuracy: Class B.
2. Alpha: 0.00385
3. diameter::4.0 mm (5/32"OD)
4. length: 200 mm ( 8" L)
5. Probe material: 316 Stainless steel
6. Cable: Three wires. 2.5ft (0.75 meter) long PFA insulation wire.
7. Maximum working temperature < 250C (480F)
Medical Temperature Sensor Instruction:
According to application, medical temperature sensor will be grouped into 3 types: body surface
temperature sensor, body cavity temperature sensor and disposable body temperature sensor.
Body surface temperature sensor is used to measure skin temperature, while body cavity temp.
sensor is used to measure the temperature of nasopharynx,esophagus,rectum,tympanic membrane
and bladder. Furthermore,during blood heating or hemodialysis, appropriate assembled medical temperature sensor can be used to monitor the blood temperature.
The body temperature is one of the body's vital signs, it is required to maintain constantly at 37°C
in order to ensure metabolism and other functions working, this is the common characteristic of all mammals.
With the improvement of monitoring techniques and development of research in body temperature,
people are paying more attention to body temperature indicator during clinical anesthesia.
Product Feature:
Small size / High precision / Stable capability / Fast response
Application:
Body surface / Body cavity / Minimally invasion
Tolerance:
25°C~45°C±0.1°C 0°C~60°C±0.2°C
Workshop Photos:
