Precision NTC Thermistor Heat Resistant Glass Shelled For Household Appliances

Precision NTC Thermistor Heat Resistant Glass Shelled For Household Appliances

Product Details:

Place of Origin: China
Brand Name: Hefei Sensing
Certification: UL,REACH, ROHS
Model Number: MF58, DO35

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk, Tape
Delivery Time: 2-7 work days
Payment Terms: T/T
Supply Ability: 100Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Head Material: Glass Lead Wire: Ni Or Sn Plated Copper Clad Steel Wire
Head Size: Φ1.8mm Wire Length: 28mm
R25℃: 0.3KΩ-4000KΩ B Value: 2800K-5000K
R Tolerance: 1%,2%,3%,5% B Tolerance: 1%, 2%,3%,5%
High Light:

ntc type thermistor

,

high temperature ntc thermistor

,

Glass Shelled Precision NTC Thermistor

Product Description

Precision NTC Thermistor Heat Resistant Glass Shelled for Household Appliances

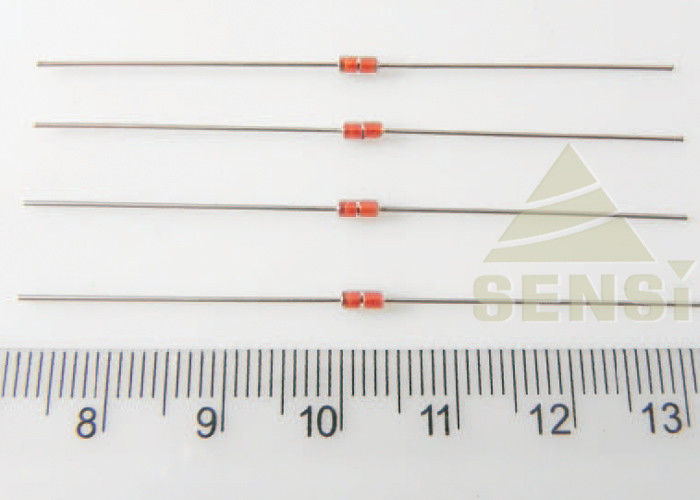

The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques.

It is equipped with tinned axial leads and then wrapped with purified glass.



Features:

• Stability, high reliability

• Resistance range: 0.3 ~ 4000KΩ

• High resistance precision

• Due to the use of glass packaging, can be used at high temperature and humidity and other harsh environments

• Small size, light weight, rugged, easy in Automated Installer

• Thermal sensing quickly

• Working temperature range: -55 ℃ ~ + 300 ℃

• Body size: Φ1.8mm X 3.8mm
• Agency recognition:UL/cUL
• RoHS compliant



Precision NTC Thermistor Heat Resistant Glass Shelled For Household Appliances 0Precision NTC Thermistor Heat Resistant Glass Shelled For Household Appliances 1



Applications:

Temperature compensation and detection for :

• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)

• Office equipment (copiers, printers etc.)

• Industrial, medical, environmental, weather and food processing equipment

• Liquid level detection and flow rate measurement

• Mobile phone battery

• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.



Specification Explain:

SJ  MF  58  -3470  -103 J

①   ②   ③     ④       ⑤  ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Glass sealing type MF58 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



 Precision NTC Thermistor Heat Resistant Glass Shelled For Household Appliances 2



Specification R25℃ (KΩ) B25/50 (K)   Disspation      constant  Thermal time   constant   Operating temp. range
SJMF58-280-301□ 0.3 2800

                                                                                                                 In still air       ≥ 2.4mW/℃











   In still air

 ≤ 10s













-55+300℃

SJMF58-338-202□ 2 3380
SJMF58-347/395-502□ 5 3470/3950
SJMF58-338/347-103□ 10 3380/3470
SJMF58-360//395-103□ 10 3600/3950
SJMF58-425-203□ 20 4250
SJMF58-395/399-473□ 47 3950/3990
SJMF58-395/399-503□ 50 3950/3990
SJMF58-395/399-104□ 100 3950/3990
SJMF58-420/425-204□ 200 4200/4250
SJMF58-440-474□ 470 4400
SJMF58-445-145□ 1400 4450
