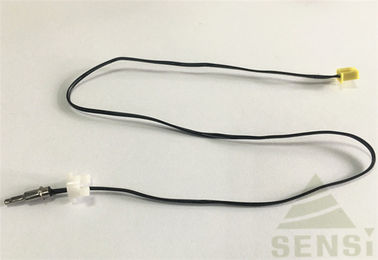

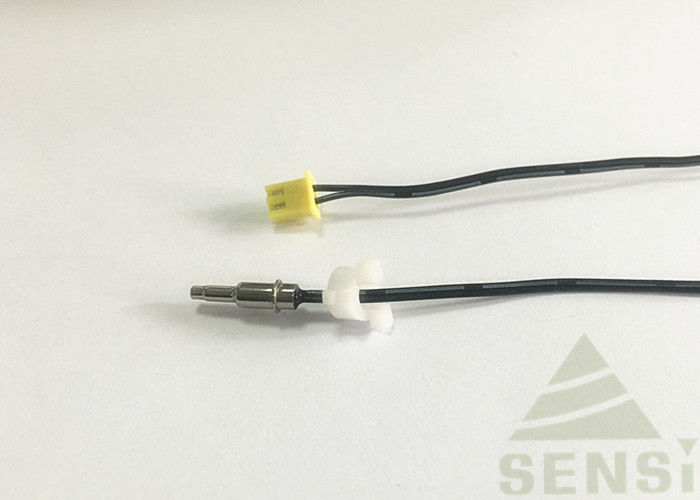

Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module

China Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module supplier
Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module supplier Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module supplier Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module supplier Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module supplier

Large Image :  Bullet Type NTC Temperature Sensor for Water Tank Temperature Control Module

Product Details:

Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MFP-3

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Contact Now
Detailed Product Description

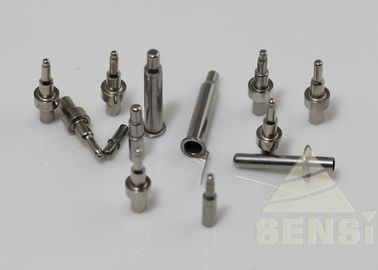

Head Material: SUS Tube(Customizable) Lead Wire: PVC , XLPE, Teflon...
Head Size: Ф4.0×16.4mm(Customizable) Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%

Apply to Temperature Control Module of Water Tank , Bullet Type NTC Sensors , Moisture Proof , For Equipment



Product Feature:



Temperature sensor design and production

Detected liquid measurement / Tip-sensitive / Quick response



Application:



Liquid Detection / Water heater / Footbath machine /  Closestool

Dryer / Sanitary ware / Incubator / Induction cooker / Auto air-conditioner



Specification Explain:



SJ     MF     P     -3     -3950    -502      F

①      ②     ③     ④        ⑤         ⑥       ⑦



① Sensing Co.,Ltd

② NTC thermistor

③ Encapsulation probe

    P: Anomalous probe encapsulated

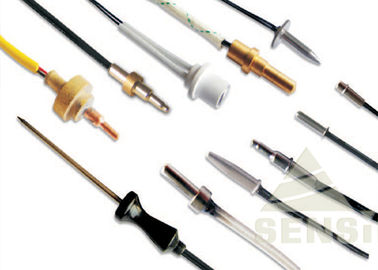

④ Anomalous probe types:

   1. Copper crimp type, 2. Surface testing type, 3 .Bullet type,

   4. Flange type, 5 .Cap shell type, 6. Screw thread type, 7. Clamp type

⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥ Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ

⑦ R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Bullet Type NTC Temperature Sensor for Water Tank Temperature Control ModuleSpecification:

Specification R25 (KΩ) B25/50 (K)   Disspation      constant  Thermal time   constant   Operating temp. range
SJMF□-□280-301□ 0.3 2800













ln still air 2.1~15mW/℃













ln still air 25~65s















-40~150℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
