Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner

China Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner supplier
Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner supplier Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner supplier Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner supplier Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner supplier

Large Image :  Aluminium NTC Temperature Sensor Probe Fast Heating for Auto Air conditioner

Product Details:

Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MFP-3

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Contact Now
Detailed Product Description
Head Material: SUS, Cu, Cu/ NI, Al...Tube Lead Wire: PVC , XLPE, Teflon...
Head Size: Customized To Your Demands Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%

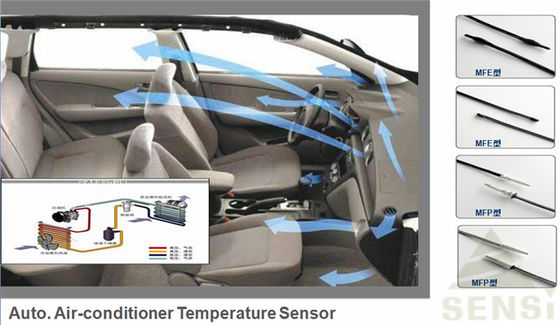

Aluminium NTC Sensor Probe , Light Material , Fast Heating , for Auto . Air-conditioner ,Scale Production



Product Feature:



Temperature sensor design and production

Detected liquid measurement / Tip-sensitive / Quick response



Application:



Liquid Detection / Water heater / Footbath machine /  Closestool

Dryer / Sanitary ware / Incubator / Induction cooker / Auto air-conditioner



Specification Explain:



SJ     MF     P     -3     -3950    -502      F

①      ②     ③     ④        ⑤         ⑥       ⑦



①Sensing Co.,Ltd

②NTC thermistor

③Encapsulation probe

    P: Anomalous probe encapsulated

④Anomalous probe types:

   1. Copper crimp type, 2. Surface testing type, 3 .Bullet type,

   4. Flange type, 5 .Cap shell type, 6. Screw thread type, 7. Clamp type

⑤B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ

⑦R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Specification:

Specification R25 (KΩ) B25/50 (K)   Disspation      constant  Thermal time   constant   Operating temp. range
SJMF□-□280-301□ 0.3 2800













ln still air 2.1~15mW/℃













ln still air 25~65s















-40~150℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
