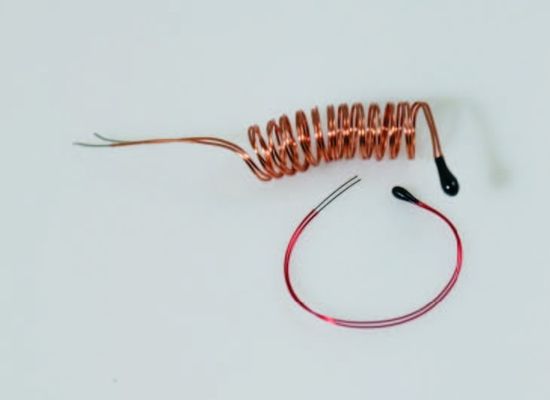

Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire

Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire
Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire

Large Image :  Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MF5A-4
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 10 Million Pieces Per Year
Detailed Product Description
Coating: Epoxy Resin Lead Diameter: Φ0.16,Φ0.25
Head Size: Φ0.8-Φ2.5mm Wire Length: 10-1000mm
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
Theory: Resistance Changes With Ambient Temperature Usage: Home Appliances, Process Control Etc.
High Light:

Enameled Lead Wire Epoxy Thermistor

,

Epoxy Coated Digital Thermometer Thermistor

,

Enameled Lead Wire Digital Thermistor

Epoxy Coated Thermistor with Enameled Lead Wire Used on Digital thermometer



Manufactured from the oxide of the transition metals Manganese,Cobalt,Copper and Nickel . NTC Thermistor are temperature dependant semiconductor resistors . The material is baked with high temperature upto 1400℃ ,then the thermistor is formed combined with our advanced semiconductor processing technics.



Applications:

Temperature compensation in circuitry.

Digital thermometer / Microwave therapeutic equipment

Thermo control instruments and electronic washing equipment



Product Feature:

Medical application precise / Varnished wire / Miniature sensor bead

Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 0





Specification Explain:

SJ      MF      5A-4        -3470      -502       F

①       ②         ③              ④           ⑤       ⑥



① Sensing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-4  series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 1 Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 2



Specification R25 (KΩ) B25/50 (K)  Disspation       constant  Thermal time   constant   Operating temp. range
SJMF5A-□-347/395/385-202□ 2 3470/3950/3850









ln still air

≥ 2.1mW/℃









 ln still air

 ≤ 12s











-40~+150℃

SJMF5A-□-327/347/395-502□ 5 3270/3470/3950
SJMF5A-□-338/347/390-103□ 10 3380/3470/3900
SJMF5A-□-395/420/405-473□ 47 3950/4200/4050
SJMF5A-□-395/420/405-503□ 50 3950/4200/4050
SJMF5A-□-395/348-152□ 1.5 3950/3480
SJMF5A-□-397/418-104□ 100 3970/4180
SJMF5A-□-453-105□ 1000 4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25 among 0.5KΩ-2000KΩ. MF5A can be custom designed.

Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 3Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 4Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 5Epoxy Coated Digital Thermometer Thermistor With Enameled Lead Wire 6

How to order?



1. The application of the NTC thermistor or temperature sensor:__________

2. The range of operation temperature:___°c to ___°c

3. The dimension and the drawing of the Thermistor

4. The R value:_____K ohm ±________% at _____°c,

5. The B value: (_____°c/____°c) = ______K ± _____%

6. Quantity demanded: _________ pcs
