Impermeable Temperature Reader TPEE 5×20mm Streamlining Industrial Automation
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Minsing |
| Model Number: | MFT-3 |
|
Detail Information |
|||
| Name: | Waterproof Temperature Sensor | Protection Level: | IP68 |
|---|---|---|---|
| Application: | Industrial Automation | Temperature Range: | -40℃ To +150℃ |
| B25/85: | 3977±1% | Accuracy: | ±0.5℃ |
| Supplier Type: | Original Manufacturer, Retailer, Other | R25: | 10kΩ±1% |
| High Light: | TPEE Temperature Reader,Impermeable Temperature Reader,IP68 Waterproof Temperature Sensor |
||
Product Description
Impermeable Temperature Reader TPEE Φ5×20mm - Streamlining Industrial Automation

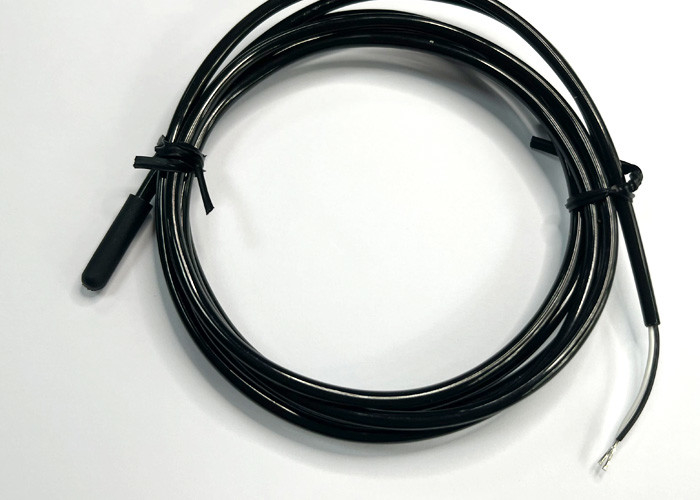

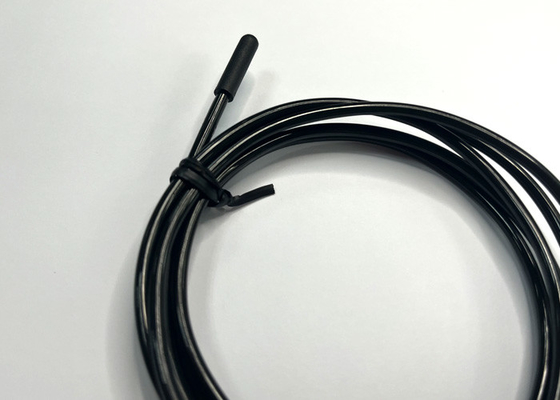

This assembly consists of a DO-35 NTC thermistor soldered to a double insulated TPEE extension cable. The sensor and the extension cable are moulded together as one hot vulcanised unit to give a high degree of protection against water/moisture ingress.
Features:
- Water-Resistant Temperature Monitor: Protection Level: IP68
- Moisture-Proof Temperature Monitor: Head Size: TPEE Φ5×20mm
- Accuracy: ±0.5℃
- Operating Temperature: -40℃ To +150℃
- Theory: Resistance Changes With Ambient Temperature
Technical Parameters:
| Parameter | Value |
|---|---|
| Name | Waterproof Temperature Sensor |
| Theory | Resistance Changes With Ambient Temperature |
| Temperature Range | -40℃ To +150℃ |
| Accuracy | ±0.5℃ |
| Housing Material | Plastic TPEE |
| Lead Wire | TPEE 2×24AWG |
| Protection Level | IP68 |
| B25/85 | 3977±1% |
| Voltage withstanding | 1800V AC 10mA 1sec |
| Insulation Resistance | DC1000V≥100MΩ 1min |
Applications:
The Hefei Minsing MFT-3 is a waterproof heat detector from China that provides reliable performance for industrial automation. It is designed to be impermeable and water-resistant, withstanding up to 1800V AC 10mA 1sec. Its theory is that it resistance changes with ambient temperature, and it has a B25/85 of 3977±1% as well as an accuracy of ±0.5℃. This temperature reader is a reliable solution for any application that requires a waterproof and temperature-sensitive device.
Customization:
Introducing the Hefei Minsing MFT-3 Waterproof Temperature Sensor, designed with a protection level of IP68 and a R25 of 10kΩ±1%, this temperature probe is sure to provide the most reliable and accurate readings. Its lead wire is made of TPEE 2×24AWG and its insulation resistance is DC1000V≥100MΩ 1min, making it watertight and durable. Its housing material is also made of plastic TPE, making it resistant to corrosion and long-lasting. This waterproof heat detector is perfect for a variety of applications, such as industrial, medical, and commercial. Whether you need a watertight temperature probe for your next project or you just want an accurate and reliable temperature sensor, the Hefei Minsing MFT-3 Waterproof Temperature Sensor is the perfect choice.
Our Services:
1. Good quality is assured by advanced manufacturing technique.
2. All products will be checked by our quality-control department.
3. Customized design. OEM&ODM is accepted.
Packing and Shipping:
Packaging and Shipping of Waterproof Temperature Sensor:
The waterproof temperature sensor is packaged securely in a cardboard box with anti-static foam to protect it from damage during shipment. The box is then placed inside a larger cardboard box for added protection. The package is then sealed with strong tape to ensure it remains closed during transit. The package is then shipped to the customer by a reliable courier.
FAQ:
Q: What is the brand name for the Waterproof Temperature Sensor?
A: The brand name for the Waterproof Temperature Sensor is Hefei Minsing.
Q: What is the model number for the Waterproof Temperature Sensor?
A: The model number for the Waterproof Temperature Sensor is MFT-3.
Q: Where is the Waterproof Temperature Sensor manufactured?
A: The Waterproof Temperature Sensor is manufactured in China.
Q: What are the features of the Waterproof Temperature Sensor?
A: The Waterproof Temperature Sensor features waterproof and temperature sensing capabilities.
Q: What are the applications of the Waterproof Temperature Sensor?
A: The Waterproof Temperature Sensor is mainly applied to outdoor and wet environment temperature measurement and monitoring.
