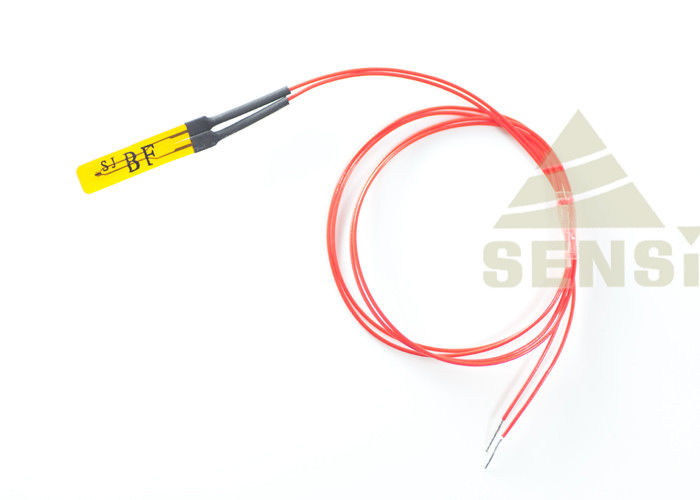

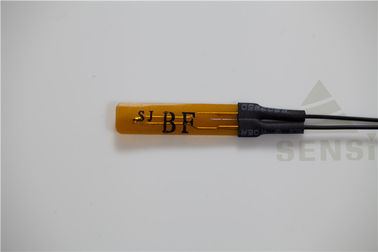

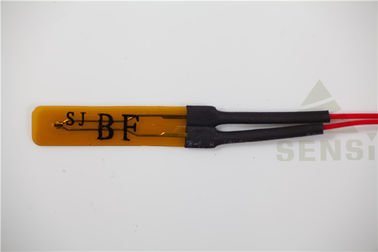

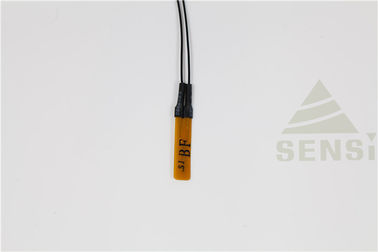

Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type

Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type
Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type

Large Image :  Insulation Film Sealed NTC Thermistor For Household Appliances Ultra Thin Type

Product Details:
Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MF5A-6
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 10 Million Pieces Per Year
Detailed Product Description
Head Material: Heat-resist Insulating Film Lead Wire: Tinned Phosphor Copper Frame
Head Size: Φ3.75/Φ4.5/Φ5.5 Wire Length: 25-75mm
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%
High Light:

ntc type thermistor

,

negative temperature coefficient ntc thermistor



Film Thermistor with Various Wires , for Household Appliances , Safety in Use, High Accuracy



Name NTC Thermistor
R(25) 10kohm
Tolerance 1%, 2%, 3%, 5%, 10%
B(25/85) 3435K
Insulation Resistance 100MΩ
Thermal time constant 5s
Thermal dissipation constant 3.5mw/°C
Operating temperature range -40°c - +120°c
Package MF58
Packing Bulk in bag
SPQ 500pcs
Original CHINA
H.S Code 85411000
Lead Free For RoHS







Product Feature:



Insulating film seal / Fast response / Good stability



Application:



Computer / Printer / Household appliances



Specification Explain:



SJ      MF      5A-6      -3470      -502      F

①       ②          ③          ④           ⑤       ⑥



①Sensing Co.,Ltd

②NTC thermistor

③Epoxy coating type 5A-6 series

④B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Specification:

Specification R25 (KΩ) B25/50 (K)  Disspation       constant  Thermal time   constant   Operating temp. range
SJMF5A-□-347/395/385-202□ 2 3470/3950/3850









ln still air

≥ 2.1mW/℃









 ln still air

 ≤ 8s











-40~+150℃

SJMF5A-□-327/347/395-502□ 5 3270/3470/3950
SJMF5A-□-338/347/390-103□ 10 3380/3470/3900
SJMF5A-□-395/420/405-473□ 47 3950/4200/4050
SJMF5A-□-395/420/405-503□ 50 3950/4200/4050
SJMF5A-□-395/348-152□ 1.5 3950/3480
SJMF5A-□-397/418-104□ 100 3970/4180
SJMF5A-□-453-105□ 1000 4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25 among 0.5KΩ-2000KΩ MF5A can be custom designed.
