Firm Structure NTC Epoxy Thermistor For Computer / Printer / Household Appliances
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | REACH ,ROHS |
| Model Number: | MF5A-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Heat-resist Insulating Film | Lead Wire: | Tinned Phosphor Copper Frame |
|---|---|---|---|
| Head Size: | Φ3.75/Φ4.5/Φ5.5 | Wire Length: | 25-75mm |
| R25℃: | 0.5KΩ-2000KΩ | B Value: | 3000K-4500K |
| R Tolerance: | 1%,2%,3%,5%,10% | B Tolerance: | 1%, 2%,3%,5% |
| High Light: | ntc thermistor sensor,ntc thermistors for temperature measurement,Firm Structure Epoxy Thermistor |
||
Product Description

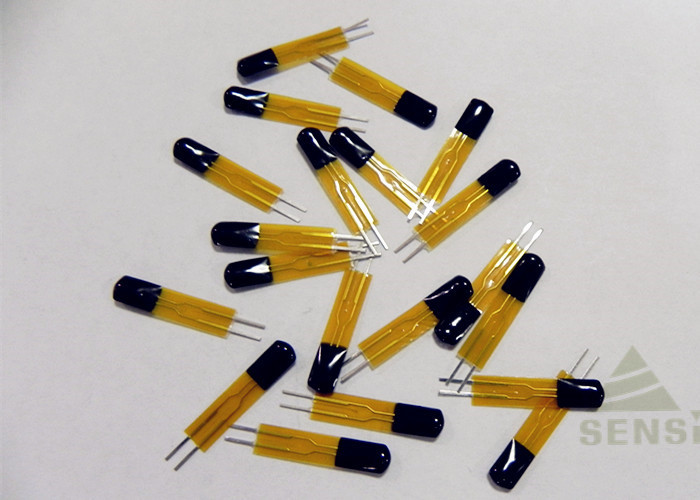

Epoxy Coated Film Type NTC Thermistor , Firm Structure , Good Appearance , for Computer , Printer
| Characteristic | Small Size,Fast Response , good quality of coherence and interchange , high testing precision |
| Application | Air condition , electric thermometer , electric table-board , etc |
| Operating Temperatrue Range | -35~ 125℃ |
| Rated Resistance | 0.2~100KΩ |
Product Feature:
Insulating film seal / Fast response / Good stability
Application:
Computer / Printer / Household appliances
Specification Explain:
SJ MF 5A-6 -3470 -502 F
① ② ③ ④ ⑤ ⑥
①Sensing Co.,Ltd
②NTC thermistor
③Epoxy coating type 5A-6 series
④B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
| SJMF5A-□-347/395/385-202□ | 2 | 3470/3950/3850 |
ln still air ≥ 2.1mW/℃ |
ln still air ≤ 8s |
-40～+150℃ |
| SJMF5A-□-327/347/395-502□ | 5 | 3270/3470/3950 | |||
| SJMF5A-□-338/347/390-103□ | 10 | 3380/3470/3900 | |||
| SJMF5A-□-395/420/405-473□ | 47 | 3950/4200/4050 | |||
| SJMF5A-□-395/420/405-503□ | 50 | 3950/4200/4050 | |||
| SJMF5A-□-395/348-152□ | 1.5 | 3950/3480 | |||
| SJMF5A-□-397/418-104□ | 100 | 3970/4180 | |||
| SJMF5A-□-453-105□ | 1000 | 4530 |
□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%
B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
