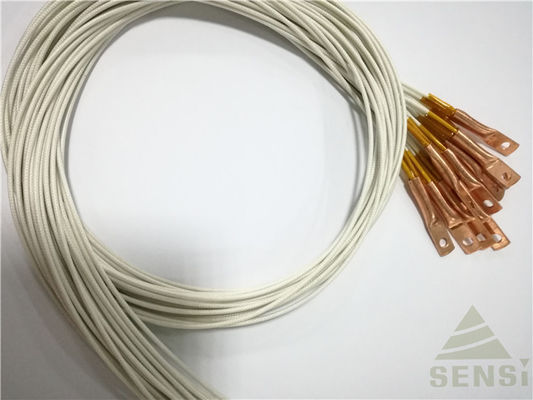

Surface Mount Temperature Sensor With Nickel Plated Cu Or Brass Probes

Surface Mount Temperature Sensor With Nickel Plated Cu Or Brass Probes

Product Details:

Place of Origin: China
Brand Name: Hefei Sensing
Certification: REACH ,ROHS
Model Number: MFP-2

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 work days
Payment Terms: T/T
Supply Ability: 6 Million Pieces Per Year
Get Best Price Contact Now

Detail Information

Head Material: Cu, Cu/ Sn Tube(Customizable) Lead Wire: PVC , XLPE, Teflon, Fibreglass Silica Gel...
Head Size: Φ4.5×40mm (Customizable) Wire Length: Customized To Your Demands
R25℃: 0.5KΩ-2000KΩ B Value: 3000K-4500K
R Tolerance: 1%,2%,3%,5%,10% B Tolerance: 1%, 2%,3%,5%
High Light:

surface contact temperature probe

,

surface temperature sensor

,

Nickel Plated Surface Mount Temperature Sensor

Product Description

Temperature Sensors, Surface Mounting Type, with Nickel Plated Cu or Brass Probes, Different Package Types



Specification Explain:



SJ MF P -2 -3950 -502 F

① ② ③ ④ ⑤ ⑥ ⑦



① Sensing Co.,Ltd

② NTC thermistor

③ Encapsulation probe

P: Anomalous probe encapsulated

④ Anomalous probe types:

1 .Copper crimp type, 2. Surface testing type, 3. Bullet type,

4 .Flange type, 5. Cap shell type, 6 .Screw thread type, 7. Clamp type

⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

⑥ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ

⑦ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)



Product Feature:



Temperature sensor design and production

Surface mounting / Easily fixed



Application:



Power Supply / Electrical motor / Radiator





Surface Mount Temperature Sensor With Nickel Plated Cu Or Brass Probes 0

Specification:

Specification R25℃ (KΩ) B25/50℃ (K) Disspation constant  Thermal time constant

Operating

temp. range

SJMF□-□280-301□ 0.3 2800













ln still air 2.1~15mW/℃













ln still air 25~65s















-40~150℃

SJMF□-□338/350-202□ 2 3380/3500
SJMF□-□327/338-502□ 5 3270/3380
SJMF□-□327/338-103□ 10 3270/3380
SJMF□-□347/395-103□ 10 3470/3950
SJMF□-□395-203□ 20 3950
SJMF□-□395/399-473□ 47 3950/3990
SJMF□-□395/399-503□ 50 3950/3990
SJMF□-□395/399-104□ 100 3950/3990
SJMF□-□420/425-204□ 200 4200/4250
SJMF□-□440-474□ 470 4400
SJMF□-□445/453-145□ 1400 4450/4530

The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.

More detailed data for reference,please visit our website: www.sensing.com.cn
