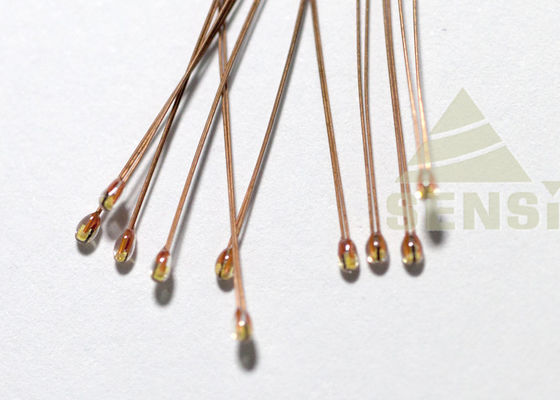

Radial Glass Encapsulated NTC Thermistor For Temperature Sensing High Delicacy
Product Details:
| Place of Origin: | China |
| Brand Name: | Hefei Sensing |
| Certification: | UL,REACH, ROHS |
| Model Number: | MF57 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5Million Pieces Per Year |
|
Detail Information |
|||
| Head Material: | Glass | Lead Wire: | Dumet Wire |
|---|---|---|---|
| Head Size: | Φ1.25 / Φ1.85mm | Wire Length: | 32mm |
| R25℃: | 0.3KΩ-4000KΩ | B Value: | 2800K-5000K |
| R Tolerance: | 1%,2%,3%,5% | B Tolerance: | 1%, 2%,3%,5% |
| High Light: | glass encapsulated thermistor,glass ntc thermistor,Radial Glass Encapsulated NTC Thermistor |
||
Product Description
Radial Glass Encapsulated NTC Thermistor , Good Stability and Security , Fast Response to the Temp. , High Delicacy
Features:
- Chip with gold electrodes
- Resistance spec. applicable in a wide temperature range
- Covers a wide temperature control range
- High-level heat resistance and environmental stability secured by glass encapsulation
- Long-term stability in resistance
- High-volume supply in high quality by integrated automatic production
Applications:
For equipment that requires high reliability in temperature measurement and control in addition to the following equipment
- Electronic thermometers
- Air conditioners
- Hot water boilers
- Home appliances
- Automobiles (water, intake air, ambient, battery, motor and fuel)
Specification:
| Specification | R25℃ (KΩ) | B25/50℃ (K) | Disspation constant | Thermal time constant | Operating temp. range |
|
SJMF57 |
0.3~4000 |
2800~5000 |
Approx. 2mW/℃ |
Approx.8s |
-50～+300℃ |
Specification Explain:
SJ MF 57 -3470 -103 J
① ② ③ ④ ⑤ ⑥
① Sensing Co.,Ltd
② NTC thermistor
③ Glass sealing type MF57 series
④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470
⑤ Standard resistance value at 25℃(R25℃):
Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ
⑥ R25℃ interchangeability precision:
F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)
FAQ:
1.Are you a factory or trading company?+1
We are a factory founded in 1994 and have over 28 years’ OEM and international trading experience.
2.What’s your main product?
Our main products are NTC Thermistor and Temperature sensor.
3.Any certification of your company or product?
We have certificates of ISO 9001:2015, IATF16949:2016, CE, UL, REACH, RoHS.
4.Which countries have your product been exported to ?
We have exported our product to over 30 countries , such as Germany,America,Poland, Filand,Canada, Spain, Italy, Sweden,France,Russia,Denmark,Netherland,Thailand,Turkey,Brazil, Mexico, Iran, U.A.E , Korea, Argentina etc.
5.Can I visit your factory?
We have over 7000 square meters of workspace and sincerely welcome your business visit.
6.Do you accept OEM or ODM?
Of course.
7.Any quality guarantee or after-sales service?
If any quality complaint , we will give out solution within 5 days.
